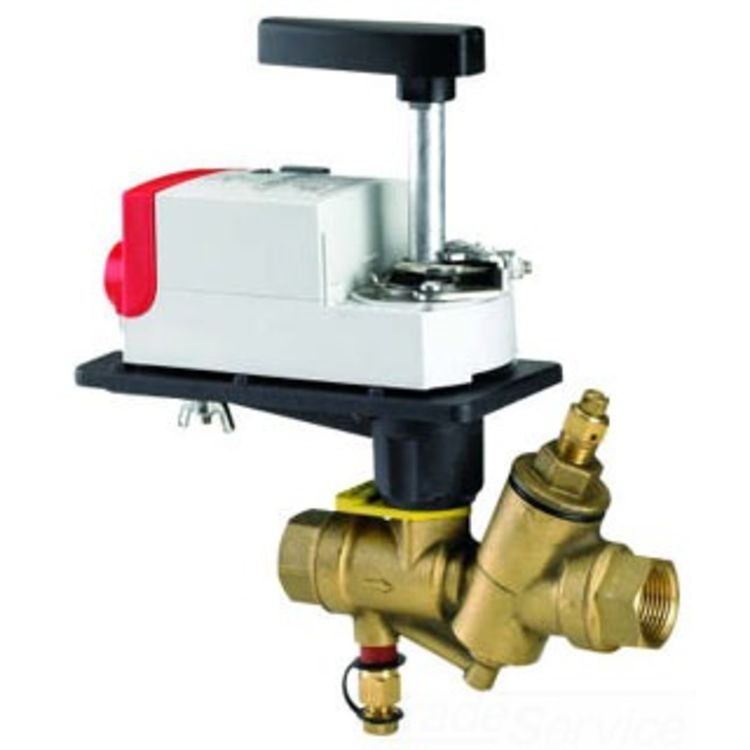

About the Honeywell VRN2AD3D2A

The Honeywell VRN2AD3D2A Fltg Picv 1/2 In Npt 2 0 Gpm w/tp is designed to keep the necessary flow pace through the valve by controlling the pressure drop across the control valve seat. The actuator adjusts the control valve portion of the valves to the requisite flow based on heating or cooling load requirements. It prevents an overflow or underflow when conventional two-way valves in multi-zone systems open or close. The Honeywell VRN2AD3D2A/M 1/2 in. f-NPT Floating Pressure Independent Control Valve is independent of supply pressure. Its actuator motion ends when the room controller is in stability and the valve is now set at finest flow. The built-in diaphragm controller balances for the adjustment if system head pressure changes which results to preserving the flow required by the control system without using the actuator. Honeywell VRN2AD3D2A/M 1/2 in. f-NPT Floating Pressure Independent Control Valve balances the structure at every point over the range of the control valve within 5% precision at published pressure ratings. The use of Honeywell VRN will result to constant comfort, greater than before energy efficiency and increased actuator life.

Product Details

Manufacturer: Honeywell
Other Info: Easy To Install
Mpn # VRN2AD3D2A
Weight 5.00 lbs.

Product Features

  • Equal Percentage with flow control insert
  • Integral snubber eliminates affect of system pressure fluctuations and entrapped air while improving flow performance.
  • Three actuator orientations on the valve for cramped spaces.
  • Upstream Test Port for venting or pressure gauge attachment.
  • Removable, manual operating handle to control valve during installation or in an event of power failure.
  • Spring return actuators field-configurable for normally open or normally closed fail-safe position.
  • Choice of factory-installed actuation using Honeywell N05/S05-series direct coupled actuators: Floating, Modulating (2-10 V), Spring Return Modulating/ Floating.
  • Patented ball seals for low operating torque.
  • Equal percentage flow characteristic using patented flow control ball insert.
  • Positive pressure, rolling diaphragm regulator design for flow control accuracy of 5%.
  • Differential pressure regulator for constant pressure drop across valve seat.
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Controls hot or chilled water with up to 50% glycol.
  • 2-way, straight-through operation
  • Female-NPT Connections
  • 2.0 gpm Flow Rating
  • 5% over specified pressure range
  • Maximum Safe Operating--248 F (120 C)
  • 8-9/16 in. x 3 in. x 9-15/16 in. (218 mm x 76 mm x 251 mm)
  • Pressure regulating in closed loop heating, ventilating, and air conditioning systems
