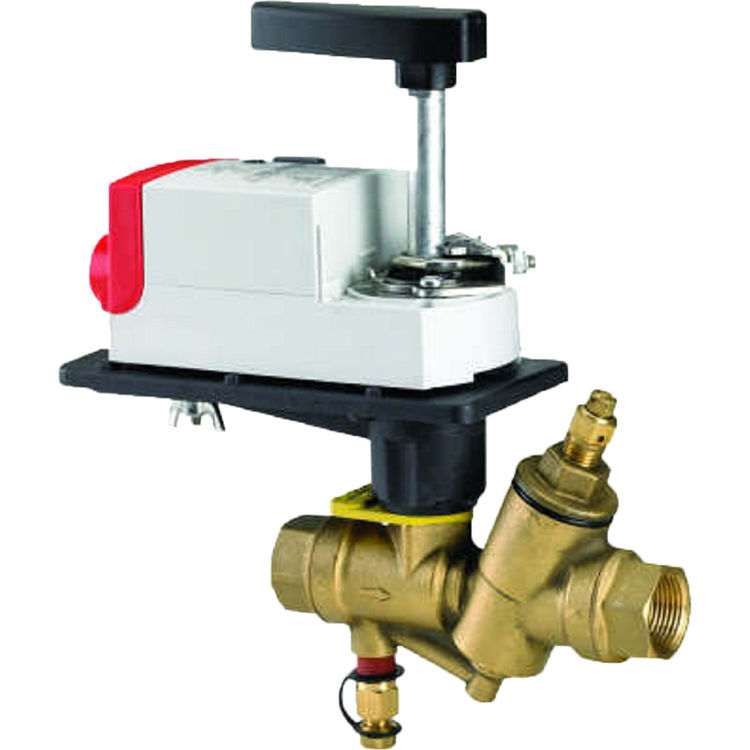

Honeywell VRN2AD3DFX/U 1/2 in f-NPT Pressure Regulated Control Valve

SKU: 379842
Minimum Quantity: 1

$167.76/ea
Save 57% · Retail: $392.31

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$167.76/ea

About the Honeywell VRN2AD3DFX

The Honeywell VRN2AD3DFX 1/2 inch Threaded Floating Pressure Independent Control Valve. This valve is a pressure regulating control valve, it is a certified product manufactured by Honeywell. It is designed to keep the necessary flow rate through the valve by controlling the pressure drop across the control valve seat. It prevents an overflow or underflow when conventional two-way valves in multi-zone systems open or close. The actuator adjusts the control valve to the requisite flow based on heating or cooling load requirements. The Honeywell VRN2AD3DFX 1/2 inch Threaded Floating Pressure Independent Control Valve works independent of supply pressure. If system head pressure changes, the built-in diaphragm controller accounts for the changes which results in preserving the flow required by the control system without using the actuator, while maintaining 5% precision at published pressure ratings. This Honeywell VRN2AD3DFX 1/2 inch Threaded Floating Pressure Independent Control Valve is recommended to improve energy efficiency while reducing your maintenance costs of closed loop heating systems and various ventilating and air conditioning systems as well.

Product Details

Product: Controller
Manufacturer: Honeywell
Type: Pressure Regulator
Mpn # VRN2AD3DFX
Weight 4.00 lbs.

Product Features

  • Field serviceable valve stem and cartridge saves service labor and system downtime
  • Equal percentage flow characteristic using patented flow control ball insert.
  • Multiple maximum flow rates available per valve size.
  • Patented ball seals for low operating torque.
  • Nickel-chrome plated brass or stainless steel trim.
  • Choice of factory-installed actuation using Honeywell N05/S05-series direct coupled actuators: Floating, Modulating (2-10 V), Spring Return Modulating/Floating.
  • Spring return actuators field-configurable for normally open or normally closed fail-safe position.
  • Removable, manual operating handle to control valve during installation or in an event of power failure.
  • Upstream Test Port for venting or pressure gauge attachment.
  • Three actuator orientations on the valve for cramped spaces.
  • Integral snubbed eliminates effect of system pressure fluctuations and entrapped air while improving flow performance.
  • Controls flow exactly at all load conditions, not only design conditions, for consistent accuracy
  • Not for use with steam or fuels.
  • 1/2 in.
  • 8-9/16 in. x 3 in. x 8-3/8 in.
  • 690 kPa
  • Quarter-turn rotary
  • Dynamic pressure-regulated control valve
  • Chilled or hot water with up to 50% Glycol.
  • MN7505 Modulating DCA
  • 90 deg. rotation
  • 218 mm x 76 mm x 213 mm
  • Accurate flow regulation allows for the optimum sizing of chillers, boilers and pumps
  • 3.0 psid to 35 psid
  • 6.5 ft to 76 ft
  • 21 kPa to 240 kPa
  • 0.23 m3/h
  • 360 psi
  • 2500 kPa
  • Optional test ports allow system access for balancing reports
  • Manual override for convenient system flushing, filling, service and manual control during power outage
  • Sizes from 1/2 to 3 in. with internal (female) NPT connections.
  • Controls hot or chilled water with up to 50% glycol.
  • Regulated flow rates available from 1 to 95 gpm.
  • Positive pressure, rolling diaphragm regulator design for flow control accuracy of 5%.
