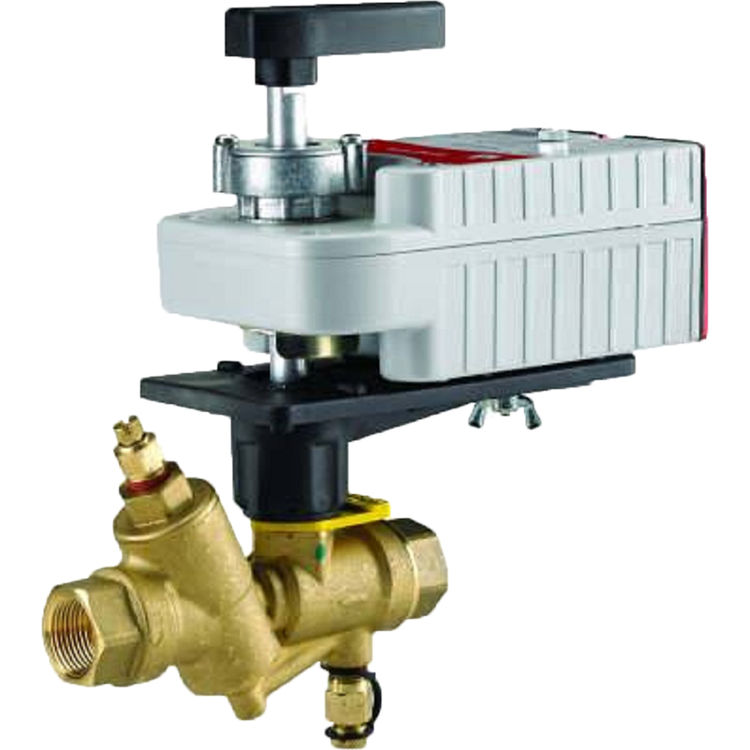

Honeywell VRN2AJ3S2D Mod F/s Picv 1/2 Inch Npt 7 0 Gpm

SKU: 379885
Save 58% · Retail: $842.51

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Honeywell VRN2AJ3S2D

The Honeywell VRN Series pressure-regulated control valves reduce overall installation labor by integrating flow control and temperature control functions into a single valve assembly and then automatically controlling the flow in each hydronic system circuit to maintain temperature when piping pressures fluctuate. The valves feature an integrated pressure control cartridge that delivers flow balancing and control functions in one package. Calculating Cv is not required, simply match the circuit flow rate with the valve capacity to determine the correct model number. VRN valves are threaded, sizes 1/2" to 3" FNPT, and use standard Honeywell 44 in-lb fail-safe and non-fail safe direct-coupled actuators.

Product Details

Manufacturer: Honeywell
Type: Pressure Regulator
Other Info: Easy To Install
Mpn # VRN2AJ3S2D
Weight 7.00 lbs.

Product Features

  • Sizes from 1/2 to 3 in. with internal (female) NPT connections.
  • Choice of factory-installed actuation using Honeywell N05/S05-series direct-coupled actuators: Floating, Modulating (2-10 V), Spring Return Modulating/Floating.
  • Spring return actuators field-configurable for normally open or normally closed fail-safe position.
  • Actuators available with optional auxiliary switches.
  • Removable, manual operating handle to control valve during installation or in an event of power failure.
  • Upstream Test Port for venting or pressure gauge attachment.
  • Three actuator orientations on the valve for cramped spaces.
  • Integral snubber eliminates affect of system pressure fluctuations and entrapped air while improving flow performance.
  • Controls hot or chilled water with up to 50% glycol.
  • Regulated flow rates available from 1 to 95 gpm.
  • Differential pressure regulator for constant pressure drop across valve seat.
  • Positive pressure, rolling diaphragm regulator design for long service life for flow control accuracy of 5% over specified control range.
  • Equal percentage flow characteristic using patented flow control ball insert.
  • Multiple regulated flow rates available per valve size.
  • Patented ball seals require low operating torque.
  • Stainless steel trim.
