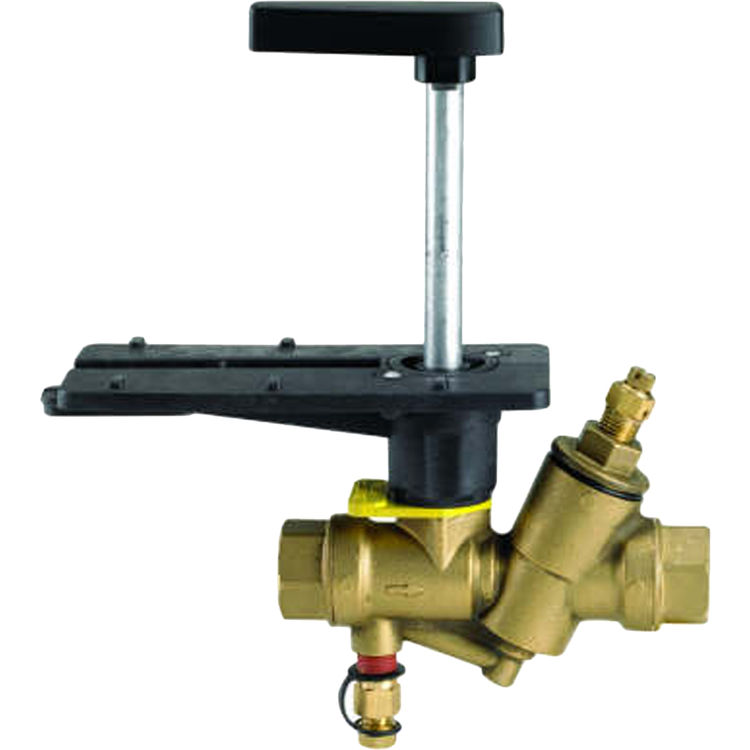

Honeywell VRN2BD3DFX/U 1/2 in f-NPT Pressure Regulated Control Valve

SKU: 379898

$187.24/ea
Save 57% · Retail: $437.84

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$187.24/ea

About the Honeywell VRN2BD3DFX

The Honeywell VRN2BD3DFX 3/4 inch Threaded Floating Pressure Independent Control Valve with Top Plate. This valve is a pressure regulating control valve, it is a certified product manufactured by Honeywell. It is designed to keep the necessary flow rate through the valve by controlling the pressure drop across the control valve seat. It prevents an overflow or underflow when conventional two-way valves in multi-zone systems open or close. The actuator adjusts the control valve to the requisite flow based on heating or cooling load requirements. The Honeywell VRN2BD3DFX 3/4 inch Threaded Floating Pressure Independent Control Valve with Top Plate works independent of supply pressure. If system head pressure changes, the built-in diaphragm controller accounts for the changes which results in preserving the flow required by the control system without using the actuator, while maintaining 5% precision at published pressure ratings. This Honeywell VRN2BD3DFX 3/4 inch Threaded Floating Pressure Independent Control Valve with Top Plate is recommended to improve energy efficiency while reducing your maintenance costs of closed loop heating systems and various ventilating and air conditioning systems as well.

Product Details

Product: Controller
Manufacturer: Honeywell
Type: Pressure Regulator
Mpn # VRN2BD3DFX
Weight 4.00 lbs.

Product Features

  • Pressure-regulating in closedloop heating, ventilating, and air conditioning systems
  • -22 F to +250 F
  • 100 psid
  • 8-9/16 in. x 3 in. x 9-15/16 in.
  • 690 kPa
  • Quarter-turn rotary
  • Dynamic pressure-regulated control valve
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Forged Brass ASTM B584
  • Teflon seals / EPDM O-rings
  • Brass
  • -10 C to 55 C
  • Equal Percentage with flow control insert
  • DCA, min. 35 lb-in torque. Not Included
  • 90 deg. rotation
  • 218 mm x 76 mm x 251 mm
  • Plated brass
  • Hydrogenated Acrylonitrile Butadiene Rubber
  • Stainless Steel
  • 3.0 psid to 35 psid
  • 6.5 ft to 76 ft
  • 21 kPa to 240 kPa
  • 5% over specified pressure range
  • 0.68 m3/h
  • 360 psi
  • 2500 kPa
  • Two shafts, universal anti-rotation bar
  • Maximum Safe Operating--248 F
  • Maximum Safe Operating--120 C
  • 14 F to 131 F
  • 3.0 gpm
  • Female-NPT
  • 2-way, straight-through
  • 1/2 in.
  • DN15
  • -30 C to +121 C
