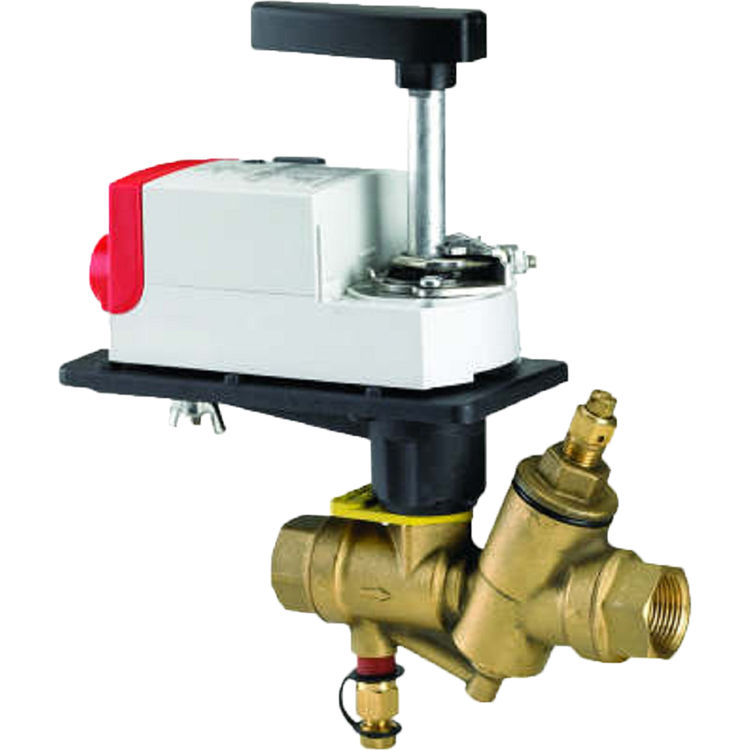

Honeywell VRN2BF3S2B Modg Picv 3/4 Inch Npt 4 0 Gpm

SKU: 379916

Save 58% · Retail: $732.94

  Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Honeywell VRN2BF3S2B

The Honeywell VRN2BF3S2B Modg Picv 3/4 Inch Npt 4 0 Gpm is designed to keep the necessary flow pace through the valve by controlling the pressure drop across the control valve seat. It prevents an overflow or underflow when conventional two-way valves in multi-zone systems open or close. The actuator adjusts the control valve portion of the valves to the requisite flow based on heating or cooling load requirements. The Honeywell VRN2BF3S2B Modg Picv 3/4 Inch Npt 4 0 Gpm is independent of supply pressure. Its actuator motion ends when the room controller is in stability and the valve is now set at finest flow. The built-in diaphragm controller balances for the adjustment if system head pressure changes which results to preserving the flow required by the control system without using the actuator. Honeywell VRN2BF3S2B Modg Picv 3/4 Inch Npt 4 0 Gpm balances the structure at every point over the range of the control valve within 5% precision at published pressure ratings. The use of Honeywell VRN will result to constant comfort, greater than before energy efficiency and increased actuator life.

Product Details

Manufacturer: Honeywell
Other Info: Easy To Install
Mpn # VRN2BF3S2B
Weight 5.00 lbs.

Product Features

  • 0.91 m3/h
  • Equal Percentage with flow control insert
  • Not for use with steam or fuels.
  • Chilled or hot water with up to 50% Glycol.
  • Dynamic Pressure Independent control valve
  • Quarter-turn rotary
  • 690 kPa
  • 100 psid
  • Fluid Temperature (C) -30 C to +121 C
  • Fluid Temperature (F) -22 F to +250 F
  • Pipe Size (DN) DN20
  • 21 kPa to 240 kPa
  • Pipe Size (inch) 3/4 in.
  • 2-way, straight-through
  • 4.0 gpm
  • 5% over specified pressure range
  • -10 C to 55 C
  • 14 F to 131 F
  • Maximum Safe Operating--120 C
  • Maximum Safe Operating--248 F
  • Maximum Safe Operating Pressure (kPa) 2500 kPa
  • 360 psi
  • 6.5 ft to 76 ft
  • 218 mm x 76 mm x 213 mm
  • 8-9/16 in. x 3 in. x 8-3/8 in.
  • Pressure regulating in closed loop heating, ventilating, and air conditioning systems
  • Integral snubber eliminates affect of system pressure fluctuations and entrapped air while improving flow performance.
  • Three actuator orientations on the valve for cramped spaces.
  • Upstream Test Port for venting or pressure gauge attachment.
  • Removable, manual operating handle to control valve during installation or in an event of power failure.
  • Spring return actuators field-configurable for normally open or normally closed fail-safe position.
  • Choice of factory-installed actuation using Honeywell N05/S05-series direct coupled actuators: Floating, Modulating (2-10 V), Spring Return Modulating/ Floating.
  • Nickel-chrome plated brass or stainless steel trim.
  • 3.0 psid to 35 psid
  • Patented ball seals for low operating torque.
  • Multiple maximum flow rates available per valve size.
  • Equal percentage flow characteristic using patented flow control ball insert.
  • Positive pressure, rolling diaphragm regulator design for flow control accuracy of 5%.
  • Differential pressure regulator for constant pressure drop across valve seat.
  • Regulated flow rates available from 1 to 95 gpm.
  • Controls hot or chilled water with up to 50% glycol.
  • Sizes from 1/2 to 3 in. with internal (female) NPT connections.
  • Manual override for convenient system fl ushing, fi lling, service and manual control during power outage
  • Optional test ports allow system access for balancing reports
  • Stainless Steel
  • Accurate fl ow regulation allows for the optimum sizing of chillers, boilers and pumps
  • Controls flow exactly at all load conditions, not only design conditions, for consistent accuracy
  • Field serviceable valve stem and cartridge saves service labor and system downtime
  • Hydrogenated Acrylonitrile Butadiene Rubber
  • Teflon seals / EPDM O-rings
  • 90 deg. rotation
  • MN7505 Modulating DCA
