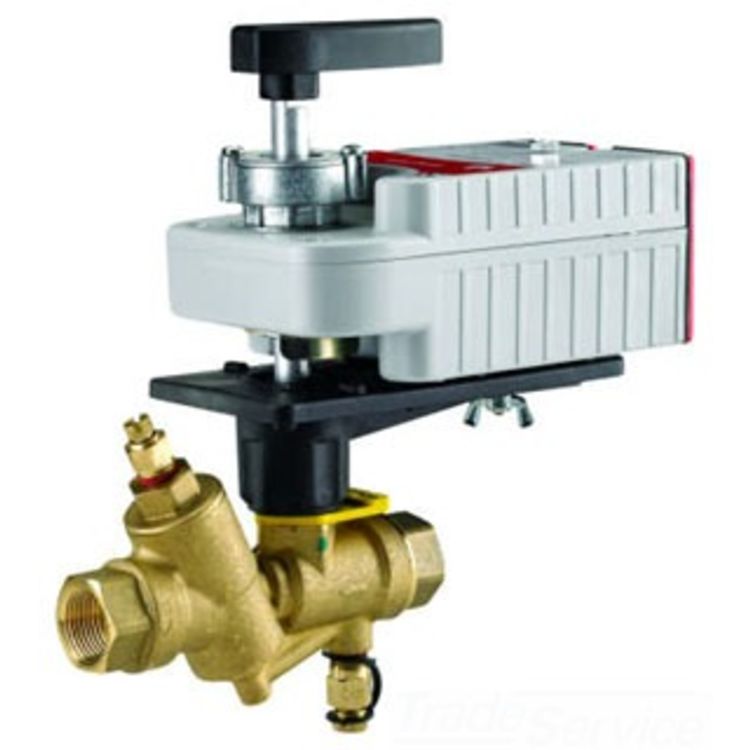

Honeywell VRN2CE3S2D Mod F/s Picv 1 Inch Npt 3 0 Gpm

SKU: 379989
Minimum Quantity: 1

$404.32/ea
Save 58% · Retail: $970.36

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$404.32/ea

About the Honeywell VRN2CE3S2D

The Honeywell VRN2CE3S2D Mod F/s Picv 1 Inch Npt 3 0 Gpm Control Valve. This valve is a pressure regulating control valve, it is a certified product manufactured by Honeywell that’s original and durable for its best dynamic feature. It is the answer to all the pressure that gives the burden for easy installation. It is designed to keep the necessary flow pace through the valve by controlling the pressure drop across the control valve seat. It prevents an overflow or underflow when conventional two-way valves in multi-zone systems open or close. The actuator adjusts the control valve portion of the valves to the requisite flow based on heating or cooling load requirements. The Honeywell VRN2CE3S2D Mod F/s Picv 1 Inch Npt 3 0 Gpm is independent of supply pressure. Its actuator motion ends when the room controller is in stability and the valve is now set at finest flow. The built-in diaphragm controller balances for the adjustment if system head pressure changes which results to preserving the flow required by the control system without using the actuator. Honeywell VRN2CE3S2D Mod F/s Picv 1 Inch Npt 3 0 Gpm balances the structure at every point over the range of the control valve within 5% precision at published pressure ratings. In order to maintain comfort and improve energy efficiency while reducing your maintenance costs, this product is highly recommended.

Product Features

  • Integral snubber eliminates effect of system pressure fluctuations and entrapped air while improving flow performance.
  • Equal percentage flow characteristic using patented flow control ball insert.
  • Positive pressure, rolling diaphragm regulator design for flow control accuracy of 5%.
  • Differential pressure regulator for constant pressure drop across valve seat.
  • Controls hot or chilled water with up to 50% glycol.
  • Sizes from 1/2 to 3 in. with internal (female) NPT connections.
  • Manual override for convenient system flushing, filling, service and manual control during power outage
  • Optional test ports allow system access for balancing reports
  • Accurate fl ow regulation allows for the optimum sizing of chillers, boilers and pumps
  • Controls flow exactly at all load conditions, not only design conditions, for consistent accuracy
  • Field serviceable valve stem and cartridge saves service labor and system downtime
  • Three actuator orientations on the valve for cramped spaces.
  • Upstream Test Port for venting or pressure gauge attachment.
  • Removable, manual operating handle to control valve during installation or in an event of power failure.
  • Spring return actuators field-configurable for normally open or normally closed fail-safe position.
  • Choice of factory-installed actuation using Honeywell N05/S05-series direct coupled actuators: Floating, Modulating (2-10 V), Spring Return Modulating/Floating.
  • Nickel-chrome plated brass or stainless steel trim.
  • Patented ball seals for low operating torque.
  • Multiple maximum flow rates available per valve size.
