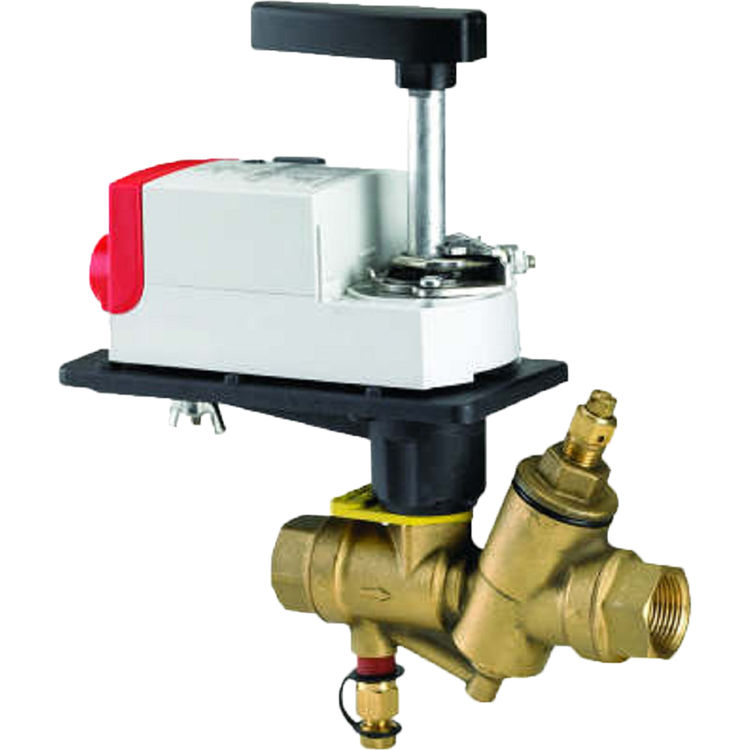

Honeywell VRN2CF3S2B Modg Picv 1 Inch Npt 4 0 Gpm

SKU: 379996
Minimum Quantity: 1

$335.62/ea
Save 58% · Retail: $805.47

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$335.62/ea

About the Honeywell VRN2CF3S2B

The VRN2 two-way dynamic pressure independent control ball valves maintain constant flow of hot/chilled water in closed loop heating, ventilating, and air conditioning (HVAC) systems regardless of head pressure fluctuation above minimum pressure drop.

Product Details

Product:
Manufacturer: Honeywell
Material: Brass & Bronze
Use: Water
Style: 2 Way
Other Info: Easy To Install
Trade Tools: HVAC
Mpn # VRN2CF3S2B
Weight 5.00 lbs.

Product Features

  • Integral snubber eliminates effect of system pressure fluctuations and entrapped air while improving flow performance.
  • Equal percentage flow characteristic using patented flow control ball insert.
  • Positive pressure, rolling diaphragm regulator design for flow control accuracy of 5%.
  • Differential pressure regulator for constant pressure drop across valve seat.
  • Regulated flow rates available from 1 to 95 gpm.
  • Controls hot or chilled water with up to 50% glycol.
  • Sizes from 1/2 to 3 in. with internal (female) NPT connections.
  • Manual override for convenient system flushing, filling, service and manual control during power outage
  • Optional test ports allow system access for balancing reports
  • Accurate fl ow regulation allows for the optimum sizing of chillers, boilers and pumps
  • Controls flow exactly at all load conditions, not only design conditions, for consistent accuracy
  • Three actuator orientations on the valve for cramped spaces.
  • Field serviceable valve stem and cartridge saves service labor and system downtime
  • Upstream Test Port for venting or pressure gauge attachment.
  • Removable, manual operating handle to control valve during installation or in an event of power failure.
  • Spring return actuators field-configurable for normally open or normally closed fail-safe position.
  • Choice of factory-installed actuation using Honeywell N05/S05-series direct coupled actuators: Floating, Modulating (2-10 V), Spring Return Modulating/Floating.
  • Nickel-chrome plated brass or stainless steel trim.
  • Patented ball seals for low operating torque.
  • Multiple maximum flow rates available per valve size.
