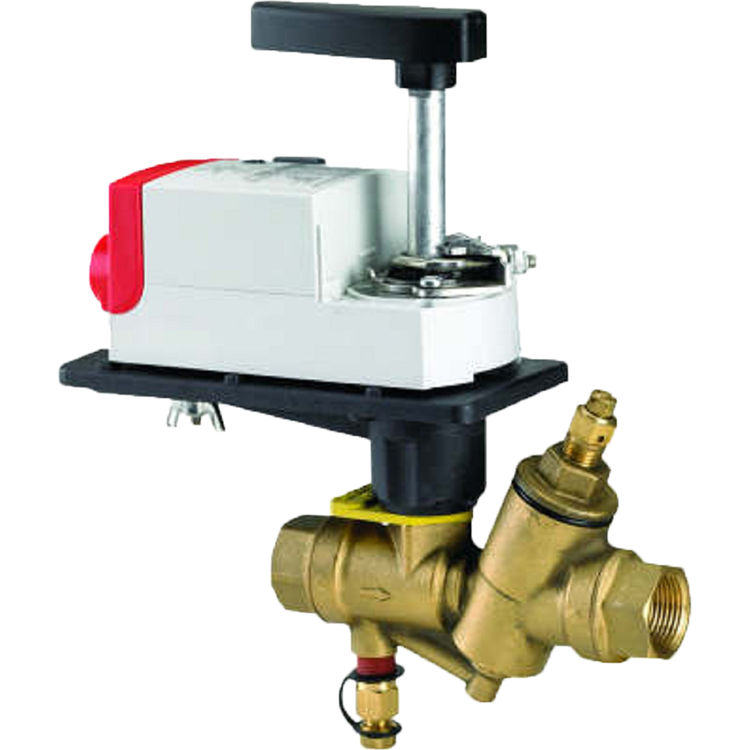

Honeywell VRN2DN3S2B 1 1/4 Inch Threaded Pressure Independent Control Valve

SKU: 380076
Save 50% · Retail: $1,122.09

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Honeywell VRN2DN3S2B

The Honeywell VRN2DN3S2B 1 1/4 Inch Threaded Pressure Independent Control Valve 15 GPM. This valve is a pressure regulating control valve. It is a certified product manufactured by Honeywell. It is designed to keep the necessary flow rate through the valve by controlling the pressure drop across the control valve seat. It prevents an overflow or underflow when conventional two-way valves in multi-zone systems open or close. The actuator adjusts the control valve to the requisite flow based on heating or cooling load requirements. The Honeywell VRN2DN3S2B 1 1/4 Inch Threaded Pressure Independent Control Valve 15 GPM works independent of supply pressure. If system head pressure changes, the built-in diaphragm controller accounts for the changes which results in preserving the flow required by the control system without using the actuator, while maintaining 5% precision at published pressure ratings. This Honeywell VRN2DN3S2B 1 1/4 Inch Threaded Pressure Independent Control Valve 15 GPM is recommended to improve energy efficiency while reducing your maintenance costs of closed loop heating systems and various ventilating and air conditioning systems as well.

Product Details

Manufacturer: Honeywell
Material: Brass & Bronze
Use: Water
Type: Ball Valve
Style: 2 Way
Connection Type: Threaded
Other Info: Easy To Install
Mpn # VRN2DN3S2B
Weight 10.00 lbs.

Product Features

  • Sizes from 1/2 to 3 in. with internal (female) NPT connections.
  • Choice of factory-installed actuation using Honeywell N05/S05-series direct-coupled actuators: Floating, Modulating (2-10 V), Spring Return Modulating/Floating.
  • Spring return actuators field-configurable for normally open or normally closed fail-safe position.
  • Actuators available with optional auxiliary switches.
  • Removable, manual operating handle to control valve during installation or in an event of power failure.
  • Upstream Test Port for venting or pressure gauge attachment.
  • Three actuator orientations on the valve for cramped spaces.
  • Integral snubber eliminates affect of system pressure fluctuations and entrapped air while improving flow performance.
  • Controls hot or chilled water with up to 50% glycol.
  • Regulated flow rates available from 1 to 95 gpm.
  • Differential pressure regulator for constant pressure drop across valve seat.
  • Positive pressure, rolling diaphragm regulator design for long service life for flow control accuracy of 5% over specified control range.
  • Equal percentage flow characteristic using patented flow control ball insert.
  • Multiple regulated flow rates available per valve size.
  • Patented ball seals require low operating torque.
  • Nickel-chrome, plated brass, or stainless steel trim.
