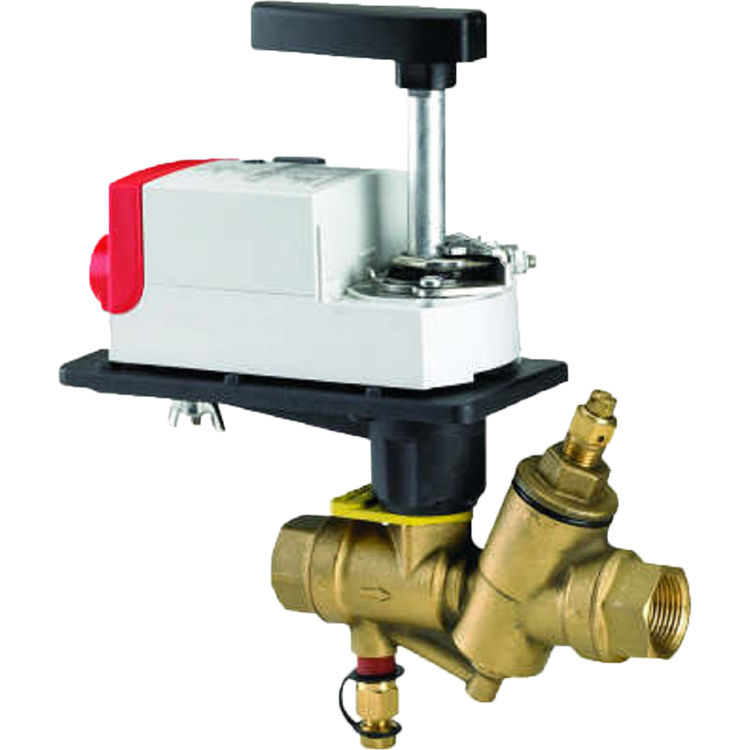

The Honeywell VRN2EN3S2D Floating Pressure Independent Control Valve with 3/4 Inch Nominal Pipe

SKU: 380133
Minimum Quantity: 1

$673.16/ea
Save 52% · Retail: $1,412.06

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$673.16/ea

About the Honeywell VRN2EN3S2D

The VRN2 two-way dynamic pressure independent control ball valves maintain constant flow of hot/chilled water in closed loop heating, ventilating, and air conditioning (HVAC) systems regardless of head pressure fluctuation above minimum pressure drop.

Product Details

Manufacturer: Honeywell
Material: Brass & Bronze
Use: Water
Type: Ball Valve
Style: 2 Way
Size:
Other Info: Easy To Install
Trade Tools: HVAC
Mpn # VRN2EN3S2D
Weight 12.00 lbs.

Product Features

  • Sizes from 1/2 to 3 in. with internal (female) NPT Connections
  • Choice of factory-installed actuation using Honeywell
  • N05/S05-series direct coupled actuators: Floating, Modulating (2-10 V), Spring Return Modulating/ Floating
  • Spring return actuators field-configurable for normally open or normally closed fail-safe position.
  • Removable, manual operating handle to control valve during installation or in an event of power failure.
  • Upstream Test Port for venting or pressure gauge Attachment
  • Three actuator orientations on the valve for cramped Spaces.
  • Integral snubber eliminates affect of system pressure fluctuations and entrapped air while improving flow performance.
  • Pipe Size: 1/2 to 3 inches with female NPT pipe fittings
  • Body: Forged Brass (ASTM B283)
  • Ball Seals: Reinforced Teflon seals, with EPDM O-rings.
  • Controls hot or chilled water with up to 50% glycol.
  • Equal Percentage with flow control insert.
  • Close-off pressure: 100 psid 360 psi (2500 kPa) at
  • Regulated flow rates available from 1 to 95 gpm.
  • Differential pressure regulator for constant pressure drop across valve seat.
  • Positive pressure, rolling diaphragm regulator design for flow control accuracy of 5%.
  • Equal percentage flow characteristic using patented flow control ball insert
  • Multiple maximum flow rates available per valve size.
  • Patented ball seals for low operating torque.
  • Nickel-chrome plated brass or stainless steel trim.
