Honeywell VRW2JV4SMB Honeywell VRW2JV4SMB/M Flanged Pressure Regulated Control Valve

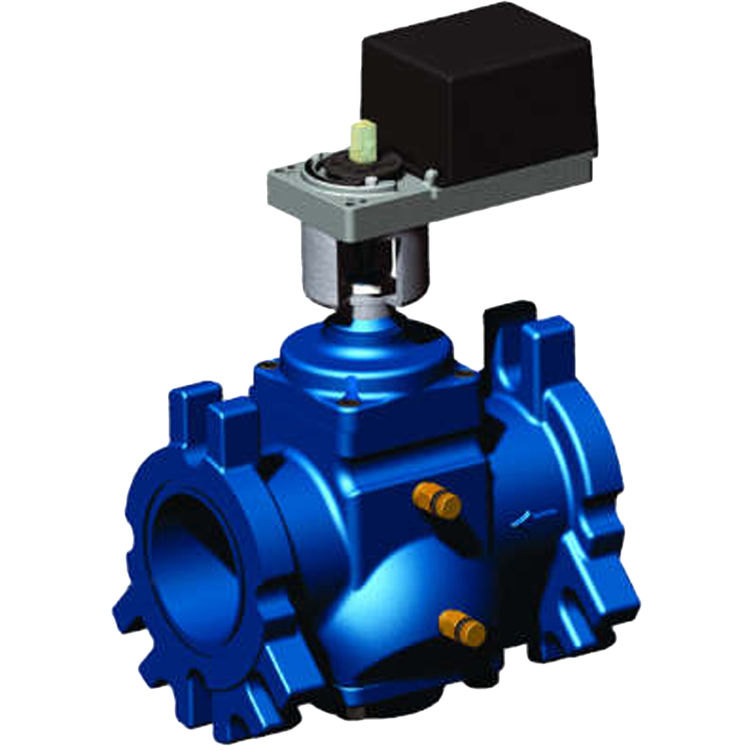

Honeywell VRW2JV4SMB/M Flanged Pressure Regulated Control Valve

SKU: 380495

This product is not currently available for purchase.

About the Honeywell VRW2JV4SMB/M Flanged Pressure Regulated Control Valve

Honeywell VRW2JV4SMB/M 2-1/2" & 3" Flanged Pressure Regulated Control Valve. The VRW2 Two-Way dynamic pressure-regulating control valves maintain constant flow of hot/chilled water in closed-loop heating, ventilating, and air conditioning (HVAC) systems regardless of head pressure fluctuations above minimum pressure drop.

Product: Controller
Manufacturer: Honeywell
Connection Type: Flanged
Mpn # VRW2JV4SMB
Weight 75.00 lbs.
  • Pressure-regulating in closedloop heating, ventilating, and air conditioning systems
  • -10 C to 55 C
  • 39 - 112 gpm
  • Wafer flange
  • 2-way, straight-through
  • 2-1/2 in. or 3 in.
  • DN65 or DN80
  • -20 C to 120 C
  • -4 F to 248 F
  • 101 psid
  • 8-7/8 in. x 7-1/2 in. x 13-7/16 in.
  • 700 kPa
  • Multi-turn linear
  • Wafer flanged dynamic pressure-regulated control valve
  • Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels.
  • Ryton Noryl engineering plastic
  • 316 Stainless steel
  • Stainless Steel
  • Equal Percentage
  • Modulating/Floating actuator
  • 150/300
  • 224 mm x 190 mm x 341 mm
  • 1 to 6 Rotations in 51 equal, field-selectable increments
  • EPDM and Nitrile O-rings
  • EPDM
  • 0.2% max.
  • 5.1 psid to 58 psid
  • 11.1 ft to 126 ft
  • 35 kPa to 400 kPa
  • 9 - 25 m3/h
  • 580 psig
  • 4000 kPa
  • 2 - 10V position feedback signal
  • Maximum Safe Operating--248 F
  • Maximum Safe Operating--120 C
  • 14 F to 131 F
