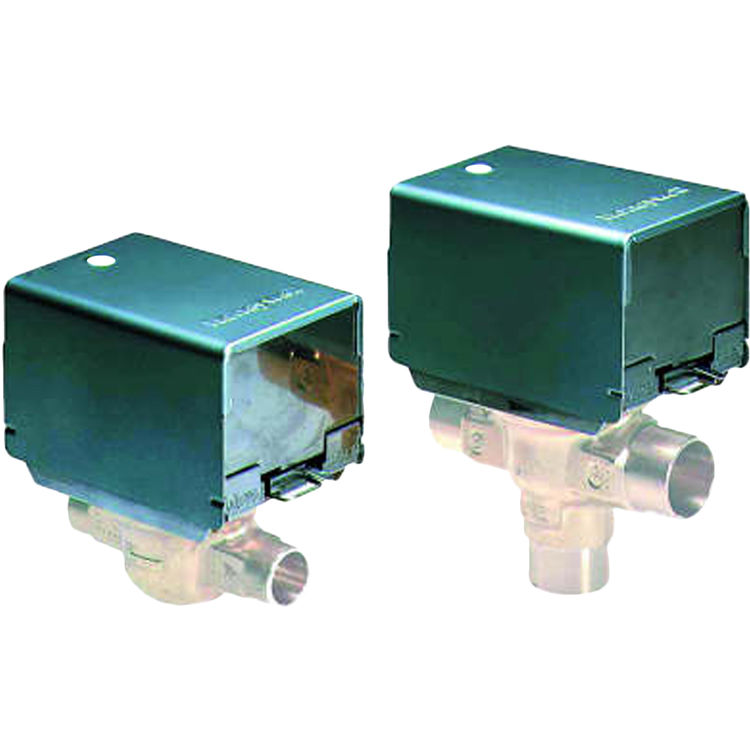

Honeywell VU443A1024/U Valve Actuator w/ 18" Leads

SKU: 380513

$59.43/ea
Save 59% · Retail: $145.36

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$59.43/ea

About the Honeywell VU443A1024

Honeywell VU443A1024/U Valve Actuator with 18" Leads. VU443 Fan Coil Valve Actuators are used with the VU52, VU53 and VU54 Valves to control the flow of hot or chilled water" commercial HVAC equipment. They are humidity resistant and suitable for use in condensing, non-corrosive environments.

Product Details

Product: Actuator
Manufacturer: Honeywell
Size:
Mpn # VU443A1024
Weight 1.06 lbs.

Product Features

  • HVAC
  • 208V
  • Driving-- 6 Watts
  • 34 F to 125 F ambient at 200 F Fluid
  • 1 C to 52 C ambient at 93 C Fluid
  • 0
  • 94 C
  • 200 F
  • Valve
  • Two position; SPST
  • Spring Return
  • 2 3/8 in. high, 3 1/2 in. wide, 2 3/8 in. wide
  • 22 deg.
  • Driving @ 60 Hz (sec)-- 15 sec maximum
  • Nominal-- 4 sec
  • Depends on Cv rating of valve
  • Lever
  • 18 in.
  • 0.5 m
  • 62 mm high, 88 mm wide, 60 mm deep
  • 2-way NC VU valve body (VU53)
  • Stainless Case, Aluminum Cover
  • For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors
  • 60 Hz
  • Certified C/US File No. LR1322
  • Leads
