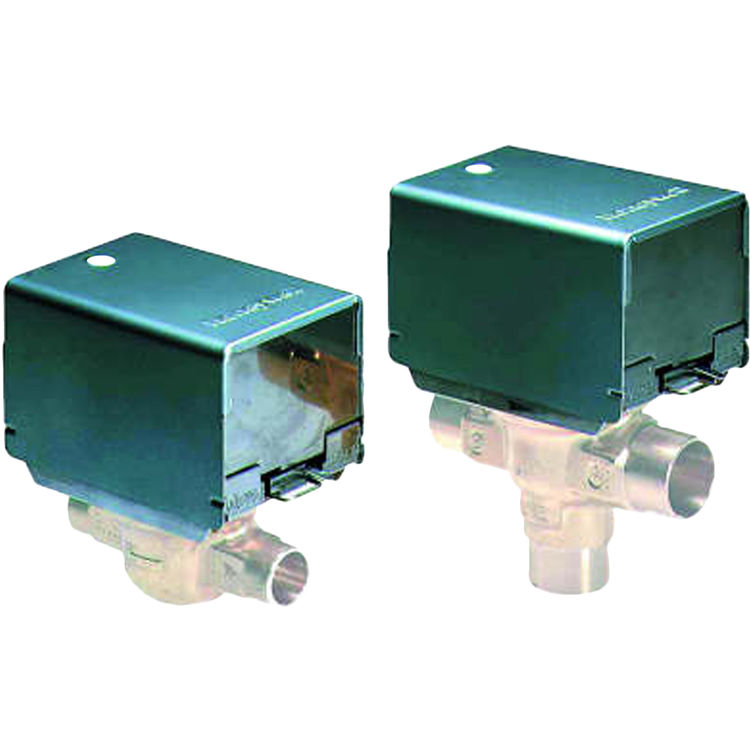

Honeywell VU443E1009/U Two-Position Actuator

SKU: 380517

Save 55% · Retail: $146.47

  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Honeywell VU443E1009

Honeywell VU443E1009/U Two-Position Actuator. VU443 Fan Coil Valve Actuators are used with the VU52, VU53 and VU54 Valves to control the flow of hot or chilled water" commercial HVAC equipment. They are humidity resistant and suitable for use in condensing, non-corrosive environments.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # VU443E1009
Weight 2.60 lbs.

Product Features

  • HVAC
  • 120V
  • Driving-- 6 Watts
  • 34 F to 125 F ambient at 200 F Fluid
  • 1 C to 52 C ambient at 93 C Fluid
  • 1 A Pilot Duty
  • 1
  • 94 C
  • 200 F
  • Valve
  • Two position; SPST
  • 2 3/8 in. high, 3 1/2 in. wide, 2 3/8 in. wide
  • Spring Return
  • SPST, N.O.
  • 22 deg.
  • Driving @ 60 Hz (sec)-- 15 sec maximum
  • Nominal-- 4 sec
  • Depends on Cv rating of valve
  • Lever
  • 18 in.
  • 0.5 m
  • 62 mm high, 88 mm wide, 60 mm deep
  • 2-way NC VU valve body (VU53)
  • Stainless Case, Aluminum Cover
  • Aux Switch Rating - Inductive: 2.2 A from 5 to 110 Vac, 1.0 A from 110 to 277 Vac; For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors
  • 60 Hz
  • Certified C/US File No. LR1322
  • Leads
