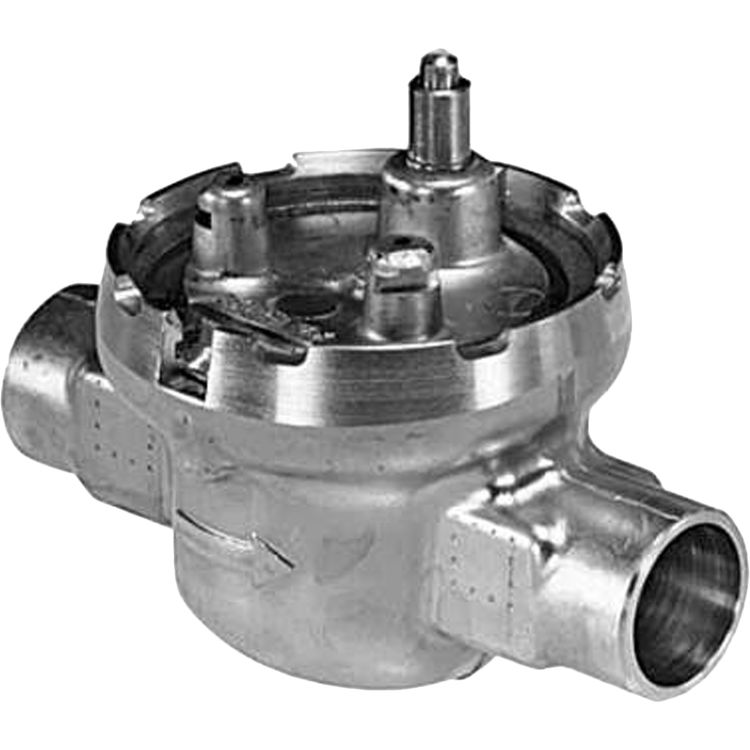

Honeywell VU53N1009/U Two-Way Fan Coil Valve

SKU: 380534
Minimum Quantity: 1

Save 54% · Retail: $70.39

  Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Honeywell VU53N1009

Honeywell VU53N1009/U 1/2" Two-Way Fan Coil Valve. The VU53 NPT high pressure, Two-Way, Fan Coil zone valves, are used to control flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors. 300 Psi Max Static Pressure Rating, 3-Point Actuator Lock. Use With Vu443 Or Vu843 Actuators. IMPORTANT: Not for use in systems containing dissolved oxygen.

Product Details

Product: Coil
Manufacturer: Honeywell
Style: 2 Way
Mpn # VU53N1009
Weight 1.25 lbs.

Product Features

  • A to B ports End to End--2 3/4 in.; Center Line of A&B ports to end of AB port--1 3/8 in.
  • Two-way, Straight-through
  • 1/2 in.
  • DN15
  • 20 psi
  • 138 kPa
  • 3.5 Cv
  • 3.0 kvs
  • Normally Closed
  • Fan Coil Valve
  • Chilled or hot water with up to 60% Glycol
  • A to B ports End to End--70 mm; Center Line of A&B ports to end of AB port--35 mm
  • Brass
  • Quick Opening
  • Must be purchased separately
  • Buna-N rubber
  • EPDM rubber
  • 300 psig
  • 2068 kappa
  • VU443 Actuator, VU843 Actuator
  • CSA C/US
  • 34 F to 125 F at 200 F Fluid
  • 1 to 52 C @ 94 C Fluid
  • Female NPT
