Honeywell VU54S2024 Honeywell VU54S2024 Three-way Fan Coil Valve

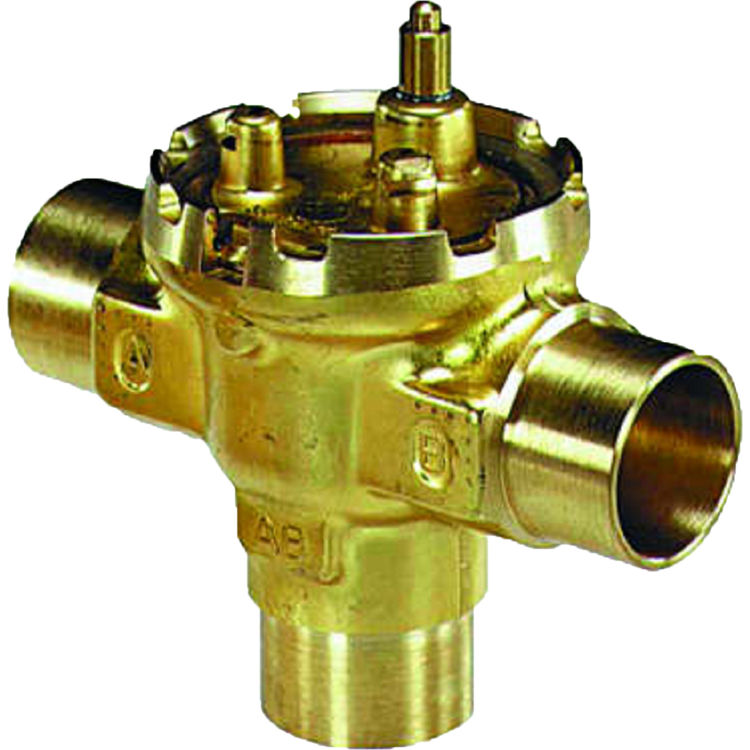

Honeywell VU54S2024 Three-way Fan Coil Valve

SKU: 380555
$ 70.66 / ea
 Free Shipping!
Save 61% · Retail: $181.18

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks




Ships From Price Qty
Chicago Illinois Warehouse
Ships in 5-7 Days
$77.74/ea 4
Order From Manufacturer
Available to Ship in 2-3 weeks
$70.66/ea

About the Honeywell VU54S2024 Three-way Fan Coil Valve

1 INCH NOMINAL SIZE; 1 INCH SWEAT X 1 INCH SWEAT X 1INCH SWEAT END CONNECTION; 3 3/8 INCH OVERALL LENGTH; 34 TO 125 DEG F TEMPERATURE RATING; MAXIMUM 300 PSIG PRESSURE RATING; BRASS BODY MATERIAL; BRASS STEM MATERIAL; EPDM RUBBER SEAL MATERIAL; APPLICATION HEATING, VENTILATING, AIR CONDITIONING SYSTEM; WATER, GLYCOL SERVICE; CSA (US AND CANADA) APPLICABLE STANDARD; VU54 MODEL

Manufacturer: Honeywell
Mpn # VU54S2024
Weight 0.94 lbs.
  • Connection Type: Female NPT
  • Maximum Differential Pressure Ratings (Close-off) (kPa) 69 kPa
  • Pipe Size (DN) DN25
  • 1 to 52 C @ 94 C Fluid
  • 34 F to 125 F at 200 F Fluid
  • Choice of NPT end connections for iron or steel piping.
  • 300 psi (2,000 kPa, PN20) operating pressure rating.
  • Fits under the cover of most baseboard convectors with actuator fitted to valve body
  • Compact construction for easy installation.
  • Actuation Must be purchased separately
  • Materials (Packing) EPDM rubber
  • Materials (Plug/Ball/Disc) Buna-N rubber
  • Controlled Fluid Chilled or hot water with up to 60% Glycol
  • Valve Type Fan Coil Valve
  • Valve Action Mixing
  • Capacity (Kv) 6.5 kvs
  • Capacity (Cv) 7.0 Cv
