Honeywell W7100C1018 Honeywell W7100C1018/U 21 to 30 Vac Discharge Air Temperature Controller

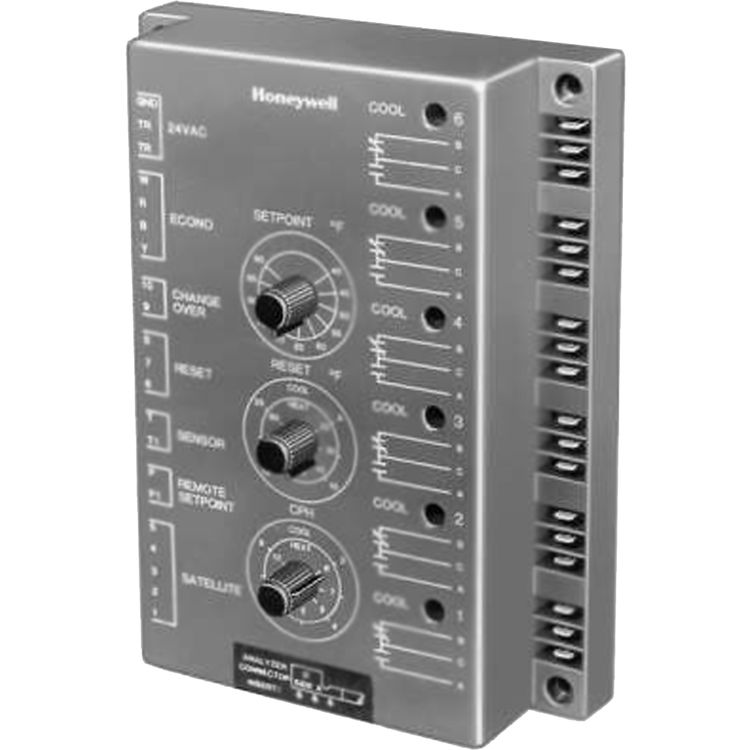

Honeywell W7100C1018/U 21 to 30 Vac Discharge Air Temperature Controller

SKU: 380566

This product is not currently available for purchase.

About the Honeywell W7100C1018/U 21 to 30 Vac Discharge Air Temperature Controller

Honeywell W7100C1018/U 21 to 30 Vac Discharge Air Temperature Controller. Controllers Maintain an average discharge air temperature in VAV systems. Reduce kilowatt demand & consumption by maintaining the minimum amount of heating or cooling capacity required to hold the discharge air set point.

Product: Temperature Control
  Controller
Manufacturer: Honeywell
Mpn # W7100C1018
Weight 0.90 lbs.
  • Discharge Air
  • NO 750 VA inrush @ 120/240 Vac, 75 VA running @ 120/240 Vac; NC 240 VA inrush @ 40 Vac, 30 VA running @ 24 Vac; NO 240 VA inrush @ 24 Vac, 60 VA running @ 24 Vac; NC 75 VA inrush @ 24 Vac, 30 VA running @ 24 Vac
  • 12 VA at 24 Vac, 50/60 Hz (max).
  • 20 to 30 Vac
  • 4 C to 32 C
  • 40 F to 90 F
  • -40 F to +150 F
  • -40 C to +65 C
  • 8 5/8 in. high x 6 1/2 in. wide x 3 in. deep
  • 219 mm high x 161 mm wide x 76 mm deep
  • Additional stages of heating and cooling can be achieved by adding a W7101 Satellite Sequencer
  • 50 Hz; 60 Hz
  • 1/4 in. quick-connect male terminals
  • 2 Heat / 4 Cool
  • W7100 family
  • Staged On/Off
