About the Honeywell ZD10X24

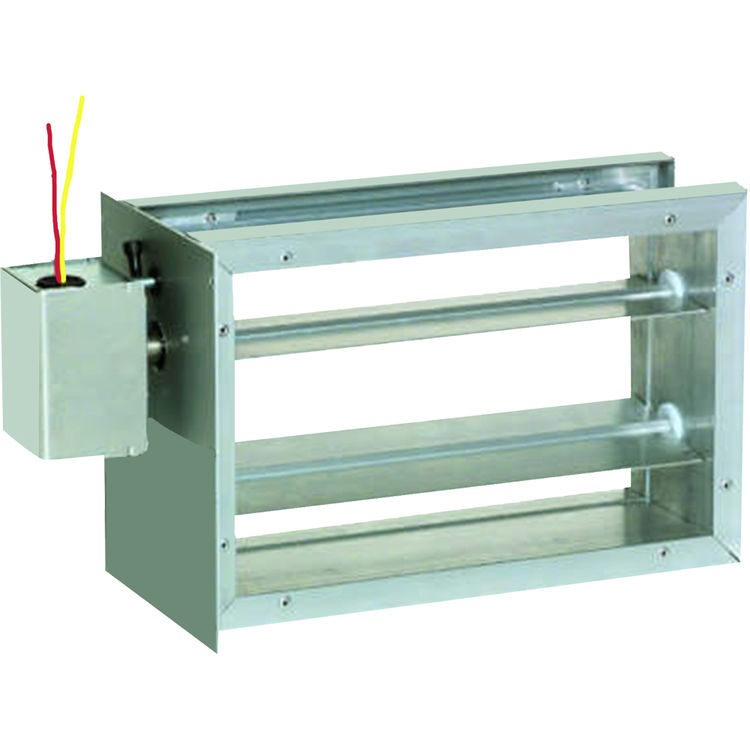

Honeywell ZD10X24 24v Parallel Blade Damper has a durable 24 volt spring return motor that is dependable. It has the basic operation that is simple and very easy to wire. This Honeywell ZD10X24 24v Parallel Blade Damper is compatible with standard and networked zoning. It has a sound perfect operation with lesser blades. The Honeywell ZD10X24 24v Parallel Blade Damper has the firm and hard construction using extruded aluminum frame and blades. It has an automatic visual position indicator for damper status and its dimensions are 16 inches x 10 inches damper with the motor on the 10 inches side. It can be mounted on the bottom or at the side of the duct as the application requires. It has a hassle free and a very easy installation. It’s a 2 wire connection, 90 Deg, Timing Rotation Angle (Sec) 30, with an Ambient Temp Range 40F-140F, its Power Method is 24 Volts, and has the Application Controls of Air Flow in Heating and Cooling Systems.

Product Details

Product: Damper
Manufacturer: Honeywell
Style: Parallel Blade Air Damper
Electrical Voltage: 24 Volt
Other Info: Easy To Install
Trade Tools: HVAC
Mpn # ZD10X24
Weight 9.50 lbs.

Product Features

  • Kevlar gearing reduces wear, more than doubling damper life.
  • Spring-return motor.
  • Can be installed in any orientation (mounting side can be on either the bottom or the side of the duct).
  • Mechanical visual position indicator for damper status.
  • Adjustable range stops.
  • Used with the True ZONE systems and other electronic zoning systems.
  • Close and spring open damper
  • Output Amps .32A,
  • Rotation Angle 90 Deg, Timing (Sec) 30
  • Ambient c Range 40F-140F
  • Application Controls Air Flow In Heating And Cooling Systems
  • Can be mounted on the side or bottom of the duct, as the application requires
  • Construction using extruded aluminum frame and blades
  • slip-in design
  • blade design for low leakage performance.
  • Easy-to-wire, two-wire operation.
  • operation with fewer blades
  • 24-volt spring-return motor.
  • Fail-safe, normally-open operation.
