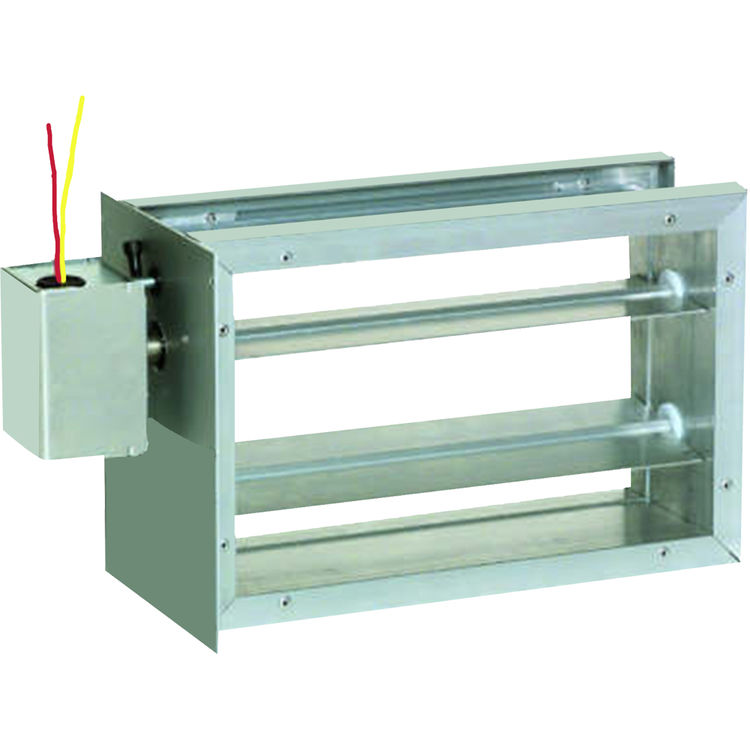

Honeywell Zd10x8 24v Parallel Blade Damper for Zoning Systems

SKU: 380666

Save 59% · Retail: $343.58

In Stock and Ready to Ship

Ships From Price Qty
Long Island Warehouse
Ships in 1-4 Days
$141.50/ea 1
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Honeywell ZD10X8


Product Details

Trade Tools: HVAC
Manufacturer: Honeywell
Style: Parallel Blade Air Damper
Electrical Voltage: 24 Volt
Product: Damper
Mpn # ZD10X8
Weight 5.00 lbs.

Product Features

  • Kevlar gearing reduces wear, more than doubling damper life.
  • Can be mounted on the side or bottom of the duct, as the application requires
  • Construction using extruded aluminum frame and blades
  • slip-in design
  • blade design for low leakage performance.
  • Easy-to-wire, two-wire operation.
  • operation with fewer blades.
  • 24-volt spring-return motor.
  • Fail-safe, normally-open operation.
  • Spring-return motor.
  • Can be installed in any orientation (mounting side can be on either the bottom or the side of the duct).
  • Mechanical visual position indicator for damper status
  • Adjustable range stops.
  • Used with the True ZONE systems and other electronic zoning systems
  • Close and spring open damper
  • Output Amps .32A,
  • Rotation Angle 90 Deg, Timing (Sec) 30
  • Ambient c Range 40F-140F
  • Application Controls Air Flow In Heating And Cooling Systems
  • Compatible with conventional and networked zoning.
  • Can be mounted on the side or bottom of the duct, as the application requires.
  • Reliable spring-return motor.
  • Simple, easy-to-wire, two-wire installation.
  • Mechanical Visual Position for Damper Status
  • Strong 24-volt spring-return motor.
  • Quiet operation with fewer blades.
  • Simple, easy-to-wire, two-wire operation.
  • Parallel blade design for low leakage performance.
  • Solid construction using extruded aluminum frame and blades.
