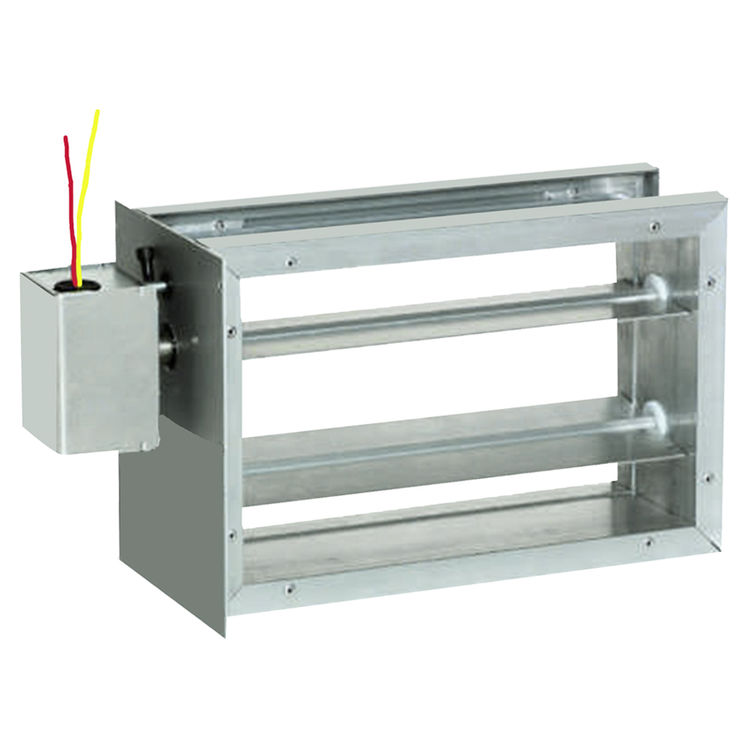

Honeywell ZD12X14 24v Parallel Blade Damper for Zoning Systems

SKU: 380669

$140.62/ea
Save 64% · Retail: $393.43

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$140.62/ea

About the Honeywell ZD12X14

24V PARALLEL BLADE ZONE DAMPER.

Product Details

Product: Damper
Manufacturer: Honeywell
Material: Aluminum
Style: Parallel Blade Air Damper
Shape: Rectangle
Color:
Electrical Voltage: 24 Volt
Trade Tools: HVAC
Mpn # ZD12X14
Weight 6.65 lbs.

Product Features

  • Kevlar gearing reduces wear, more than doubling damper life.
  • Spring-return motor.
  • Can be installed in any orientation (mounting side can be on either the bottom or the side of the duct).
  • Mechanical visual position indicator for damper status.
  • Adjustable range stops.
  • Used with the True ZONE systems and other electronic zoning systems.
  • Close and spring open damper
  • Output Amps .32A,
  • Rotation Angle 90 Deg, Timing (Sec) 30
  • Ambient c Range 40F-140F
  • Application Controls Air Flow In Heating And Cooling Systems
  • Can be mounted on the side or bottom of the duct, as the application requires
  • Mechanical visual position indicator for damper status
  • Compatible with conventional and networked zoning.
  • Kevlar gearing reduces wear, more than doubling damper life.
  • Can be mounted on the side or bottom of the duct, as the application requires.
  • Reliable spring-return motor.
  • Simple, easy-to-wire, two-wire installation.
  • Mechanical Visual Position for Damper Status
  • Fail-safe, normally-open operation.
  • Strong 24-volt spring-return motor.
  • Quiet operation with fewer blades.
  • Construction using extruded aluminum frame and blades
  • Simple, easy-to-wire, two-wire operation.
  • Parallel blade design for low leakage performance.
  • Easy slip-in design.
  • Solid construction using extruded aluminum frame and blades.
  • Ordering Instructions: Order ZD (dimension 1) x (dimension 2). (Motor is always mounted on dimension 2 side.) For example, ZD10x8 is a 10 in. x 8 in. damper with the motor on the 8 in. side; but a ZD8x10 is a 8 in. x 10 in. damper that has the motor on the 10 in. side.
  • slip-in design
  • blade design for low leakage performance.
  • Easy-to-wire, two-wire operation.
  • operation with fewer blades.
  • 24-volt spring-return motor.
  • Fail-safe, normally-open operation.
