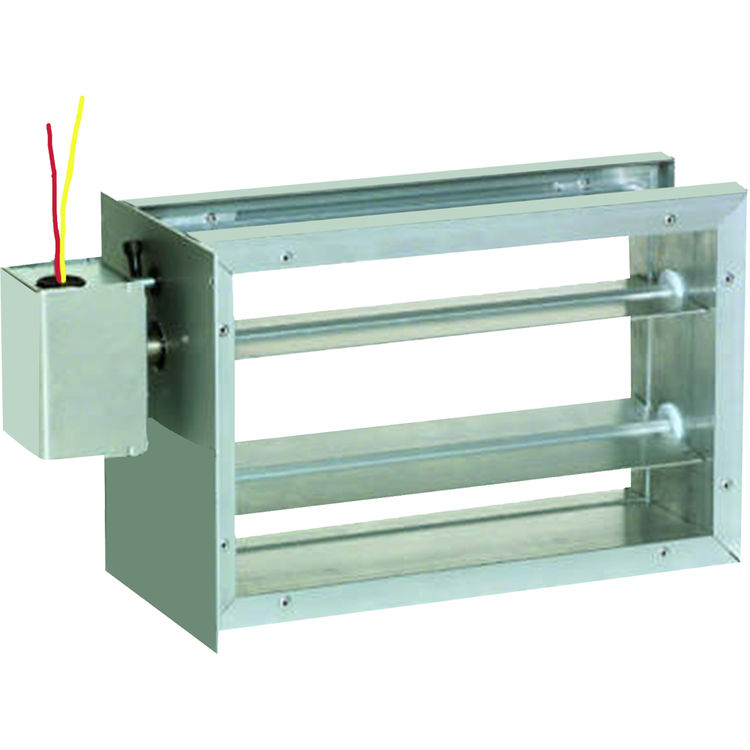

Honeywell ZD12X18 24v Parallel Blade Damper for Zoning Systems

SKU: 380671

$154.58/ea
Save 63% · Retail: $412.85

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$154.58/ea

About the Honeywell ZD12X18

The Honeywell ZD12X18 24v Parallel Blade Zone Damper has a durable 24 volt spring return motor that is dependable. It has the basic operation that is simple and very easy to wire. This Honeywell ZD12X18 24v Parallel Blade Zone Damper is compatible with standard and networked zoning. It has a sound perfect operation with lesser blades. The Honeywell ZD12X18 24v Parallel Blade Zone Damper has the firm and hard construction using extruded aluminum frame and blades. It has an automatic visual position indicator for damper status and its dimensions are 12 inches x 18 inches damper with the motor on the 10 inches side. It can be mounted on the bottom or at the side of the duct as the application requires. It has a hassle free and a very easy installation. It’s a 2 wire connection, 90 Deg, Timing Rotation Angle (Sec) 30, with an Ambient Temp Range 40F-140F, its Power Method is 24 Volts, and has the Application Controls of Air Flow in Heating and Cooling Systems.

Product Details

Product: Damper
Manufacturer: Honeywell
Material: Aluminum
Style: Parallel Blade Air Damper
Shape: Rectangle
Color:
Electrical Voltage: 24 Volt
Other Info: Easy To Install
Trade Tools: HVAC
Mpn # ZD12X18
Weight 8.70 lbs.

Product Features

  • Kevlar gearing reduces wear, more than doubling damper life.
  • Spring-return motor.
  • Can be installed in any orientation (mounting side can be on either the bottom or the side of the duct).
  • Parallel blade design for low leakage performance.
  • Easy slip-in design.
  • Solid construction using extruded aluminum frame and blades.
  • Ordering Instructions: Order ZD (dimension 1) x (dimension 2). (Motor is always mounted on dimension 2 side.) For example, ZD10x8 is a 10 in. x 8 in. damper with the motor on the 8 in. side; but a ZD8x10 is a 8 in. x 10 in. damper that has the motor on the 10 in. side.
  • Can be mounted on the side or bottom of the duct, as the application requires
  • Construction using extruded aluminum frame and blades
  • slip-in design
  • blade design for low leakage performance.
  • Easy-to-wire, two-wire operation.
  • operation with fewer blades.
  • 24-volt spring-return motor
  • Fail-safe, normally-open operation.
