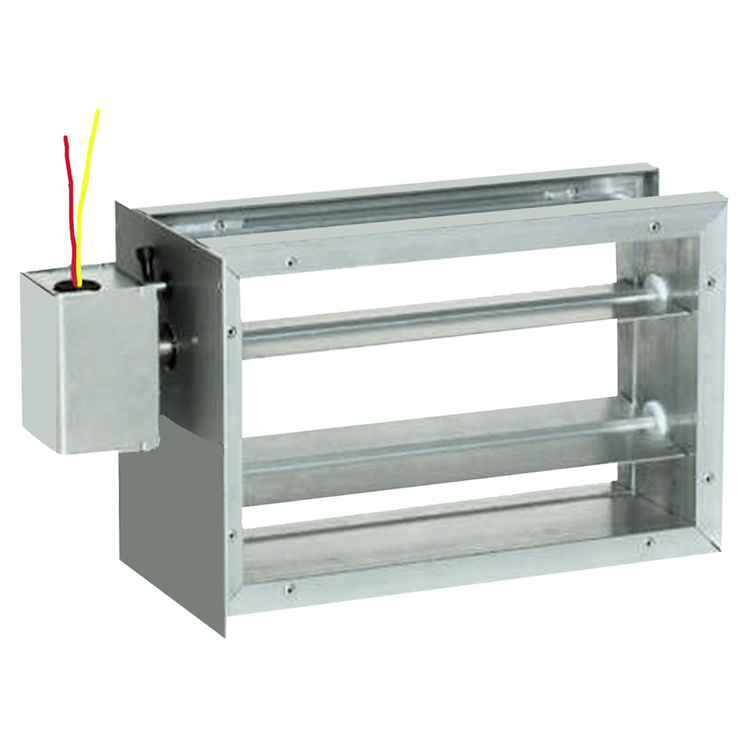

HONEYWELL ZD14X22 14 in. x 22 in. Parallel Blade Damper

SKU: 380685

$165.32/ea
Save 63% · Retail: $450.25

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$165.32/ea

About the Honeywell ZD14X22

24V PARALLEL BLADE ZONE DAMPER.

Product Details

Product: Damper
Manufacturer: Honeywell
Material: Aluminum
Style: Parallel Blade Air Damper
Shape: Square
Color:
Electrical Voltage: 24 Volt
Other Info: Easy To Install
Trade Tools: HVAC
Mpn # ZD14X22
Weight 11.00 lbs.

Product Features

  • Kevlar gearing reduces wear, more than doubling damper life.
  • Spring-return motor.
  • Can be installed in any orientation (mounting side can be on either the bottom or the side of the duct).
  • Mechanical visual position indicator for damper status.
  • Adjustable range stops.
  • Used with the True ZONE systems and other electronic zoning systems.
  • Close and spring open damper
  • Output Amps .32A,
  • Rotation Angle 90 Deg, Timing (Sec) 30
  • Ambient c Range 40F-140F
  • Application Controls Air Flow In Heating And Cooling SystemsApplication Controls Air Flow In Heating And Cooling Systems
  • Can be mounted on the side or bottom of the duct, as the application requires
  • Can be mounted on the side or bottom of the duct, as the application requires.
  • Adjustable Range Stops
  • Other Motor Information Range stops
  • Motor Timing 30 seconds power open/10 seconds spring return
  • Motor power closed, spring open
  • Shape Rectangular
  • Size (in.) 14 in. x 22 in.
  • Voltage 24V
  • 10 in. x 8 in. damper with the motor on the 8 in. side
  • Fail-safe, normally open operation
  • Construction using extruded aluminum frame and blades
  • Reliable, strong, 24-volt spring-return motor
  • Simple, easy-to-wire, two-wire installation.
  • Parallel blade design for low leakage performance
  • Solid construction using extruded aluminum frame and blades
  • Mechanical visual position indicator for damper status
  • slip-in design
  • blade design for low leakage performance.
  • Easy-to-wire, two-wire operation.
  • operation with fewer blades.
  • 24-volt spring-return motor.
  • Fail-safe, normally-open operation.
