The Honeywell ZD16X6 24V Parallel Blade Zone Damper

SKU: 380700

$150.63/ea
Save 59% · Retail: $365.74

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$150.63/ea

About the Honeywell ZD16X6

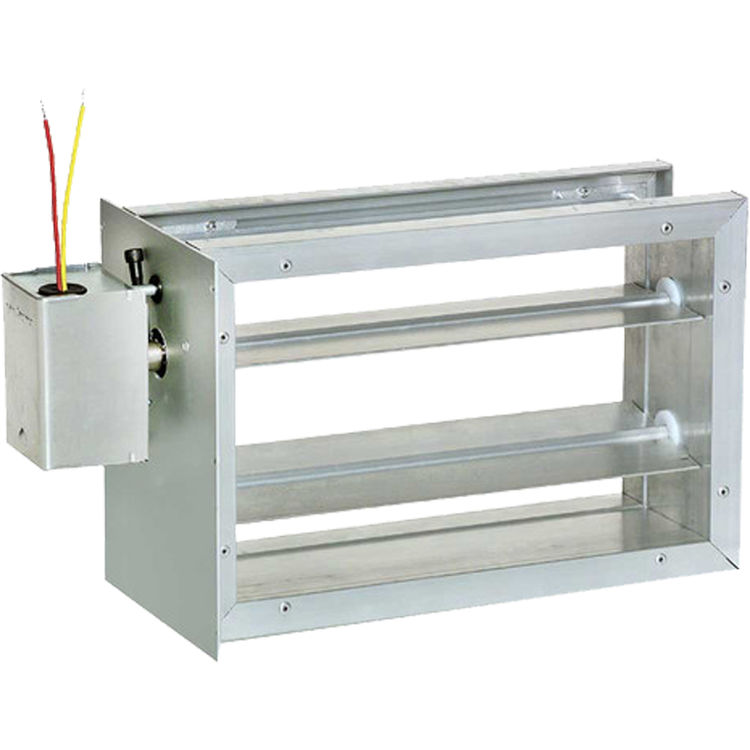

The Honeywell ZD16X6 24V Parallel Blade Zone Damper has a durable 24 volt spring return motor that is dependable. It has the basic operation that is simple and very easy to wire. This Honeywell ZD16X6 24V Parallel Blade Zone Damper is compatible with standard and networked zoning. It has a sound perfect operation with lesser blades. The Honeywell ZD16X6 24V Parallel Blade Zone Damper has the firm and hard construction using extruded aluminum frame and blades. It has an automatic visual position indicator for damper status and its dimensions are 16 inches x 10 inches damper with the motor on the 10 inches side. It can be mounted on the bottom or at the side of the duct as the application requires. It has a hassle free and a very easy installation. It’s a 2 wire connection, 90 Deg, Timing Rotation Angle (Sec) 30, with an Ambient Temp Range 40F-140F, its Power Method is 24 Volts, and has the Application Controls of Air Flow in Heating and Cooling Systems.

Product Details

Product: Damper
Material: Aluminum
Style: Parallel Blade Air Damper
Shape: Rectangle
Electrical Voltage: 24 Volt
Other Info: Easy To Install
Mount Type:
Trade Tools: HVAC
Mpn # ZD16X6
Weight 6.00 lbs.

Product Features

  • Application Controls Air Flow In Heating And Cooling Systems
  • Can be installed in any orientation (mounting side can be on either the bottom or the side of the duct).
  • Spring-return motor.
  • Fail-safe, normally-open operation.
  • 24-volt spring-return motor.
  • operation with fewer blades.
  • Easy-to-wire, two-wire operation.
  • blade design for low leakage performance.
  • slip-in design
  • Construction using extruded aluminum frame and blades
  • Can be mounted on the side or bottom of the duct, as the application requires
  • Ambient c Range 40F-140F
  • Kevlar gearing reduces wear, more than doubling damper life.
  • Rotation Angle 90 Deg, Timing (Sec) 30
  • Connection 2 Wires
  • Output Amps .32A,
  • Close and spring open damper
  • Used with the True ZONE systems and other electronic zoning systems.
  • Adjustable range stops.
  • Mechanical visual position indicator for damper status.
