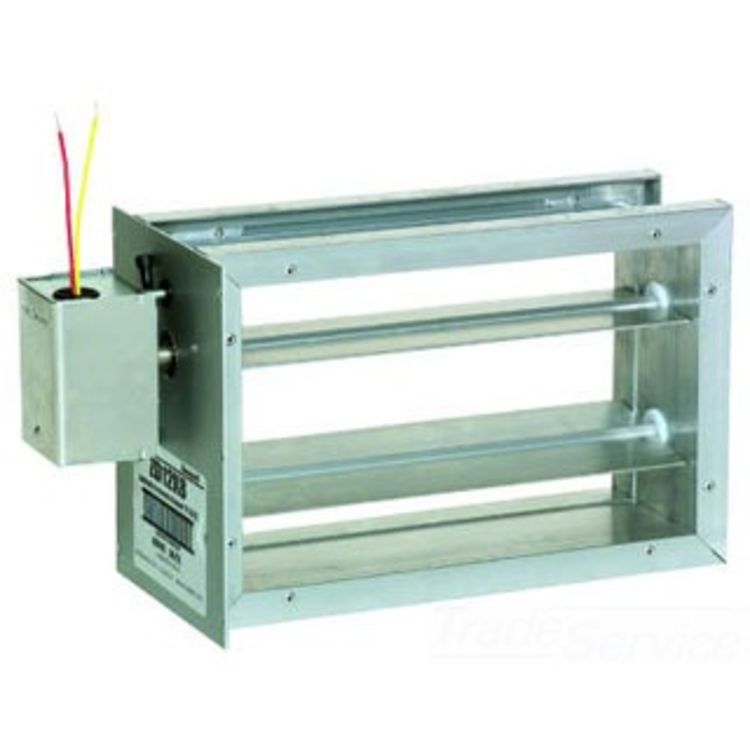

The Honeywell ZD18X26 24V Parallel Blade Zone Damper

SKU: 380710
Save 60% · Retail: $567.74

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Honeywell ZD18X26


Product Details

Product: Damper
Manufacturer: Honeywell
Material: Aluminum
Style: Parallel Blade Air Damper
Electrical Voltage: 24 Volt
Other Info: Easy To Install
Mount Type:
Trade Tools: HVAC
Mpn # ZD18X26
Weight 12.45 lbs.

Product Features

  • Mechanical visual position indicator for damper status
  • Quiet operation with fewer blades.
  • Simple, easy-to-wire, two-wire operation.
  • Easy slip-in design.
  • Close and spring open damper
  • Used with the True ZONE systems and other electronic zoning systems.
  • Solid construction using extruded aluminum frame and blades.
  • Application Controls Air Flow In Heating And Cooling Systems
  • Output Amps .32A
  • Rotation Angle 90 Deg, Timing (Sec) 30
  • Ordering Instructions: Order ZD (dimension 1) x (dimension 2). (Motor is always mounted on dimension 2 side.) For example, ZD10x8 is a 10 in. x 8 in. damper with the motor on the 8 in. side; but a ZD8x10 is a 8 in. x 10 in. damper that has the motor on the 10 in. side.
  • Compatible with conventional and networked zoning.
  • Kevlar gearing reduces wear, more than doubling damper life.
  • Can be mounted on the side or bottom of the duct, as the application requires.
  • Reliable spring-return motor.
  • Simple, easy-to-wire, two-wire installation.
  • Mechanical Visual Position for Damper Status
  • Fail-safe, normally-open operation.
  • Strong 24-volt spring-return motor.
