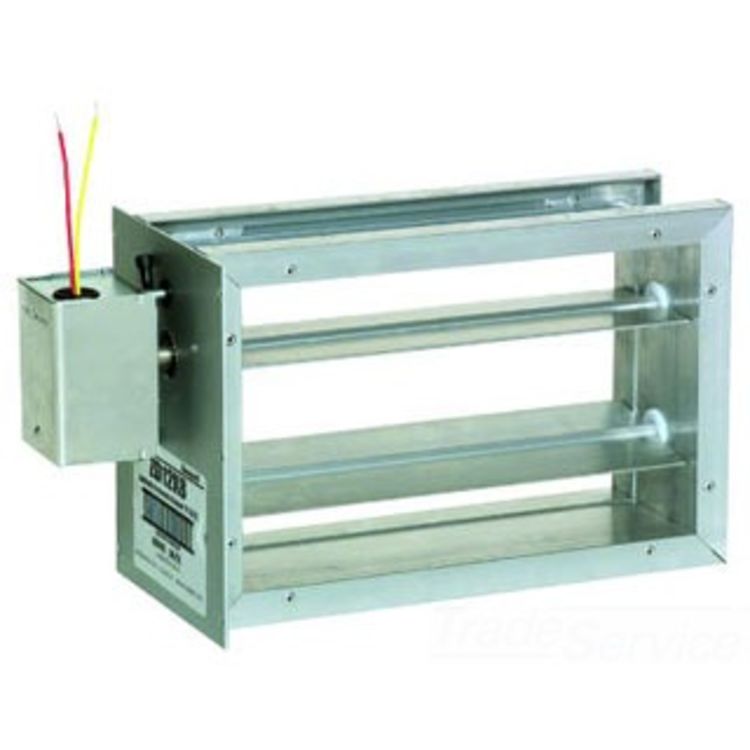

The Honeywell ZD20X6 24V Parallel Blade Zone Damper

SKU: 380721
Minimum Quantity: 1

$165.57/ea
Save 57% · Retail: $387.18

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$165.57/ea

About the Honeywell ZD20X6

The Honeywell ZD20X6 24V Parallel Blade Zone Damper has a durable 24 volt spring return motor that is dependable. It has the basic operation that is simple and very easy to wire. This Honeywell ZD20X6 24V Parallel Blade Zone Damper is compatible with standard and networked zoning. It has fewer blades than the competing models which means it runs smoother and quieter. The Honeywell ZD20X6 24V Parallel Blade Zone Damper has the firm and hard construction using extruded aluminum frame and blades. It has an automatic visual position indicator for damper status and its dimensions are 20 inches x 6 inches damper with the motor on the 6 inches side. It can be mounted on the bottom or at the side of the duct as the application requires. It has a hassle free and a very easy installation. It’s a 2 wire connection, 90 Deg, Timing Rotation Angle (Sec) 30, with an Ambient Temp Range 40F-140F, its Power Method is 24 Volts, and has the Application Controls of Air Flow in Heating and Cooling Systems.

Product Features

  • Mechanical visual position indicator for damper status
  • two-wire installation.
  • Mechanical Visual Position for Damper Status
  • Fail-safe
  • normally-open operation.
  • Strong 24-volt spring-return motor.
  • Quiet operation with fewer blades.
  • two-wire operation.
  • Easy slip-in design.
  • Close and spring open damper
  • Used with the True ZONE systems and other electronic zoning systems.
  • Compatible with conventional and networked zoning.
  • Solid construction using extruded aluminum frame and blades.
  • Application Controls Air Flow In Heating And Cooling Systems
  • Output Amps .32A
  • Rotation Angle 90 Deg
  • Timing (Sec) 30
  • Ordering Instructions: Order ZD (dimension 1) x (dimension 2). (Motor is always mounted on dimension 2 side.) For example
  • ZD10x8 is a 10 in. x 8 in. damper with the motor on the 8 in. side; but a ZD8x10 is a 8 in. x 10 in. damper that has the motor on the 10 in. side.
  • Kevlar gearing reduces wear
  • more than doubling damper life.
  • Can be mounted on the side or bottom of the duct
  • as the application requires.
  • Reliable spring-return motor.
  • Simple
  • easy-to-wire
