Liberty D3660LSG203-24 Liberty D3660LSG203-24 Duplex Grinder Package

Liberty D3660LSG203-24 Duplex Grinder Package

SKU: 188647

This product is not currently available for purchase.

About the Liberty D3660LSG203-24 Duplex Grinder Package

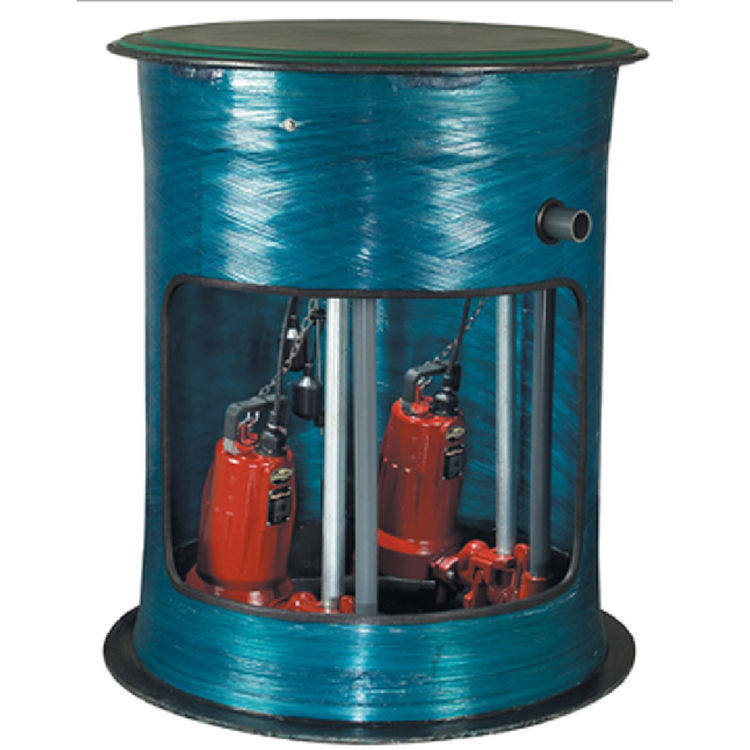

The Liberty D3660LSG203-24 is a pre-assembled duplex grinder package consisting of 2 LSG pumps and a basin. This package is used for commercial and residential sewage applications. Its pumps are powered by 2 hp oil-filled motors with thermal overload protection. The voltage needed to run the pumps is 208/230V 3-phase. It has a 2” discharge size and it is 24” deep from the top of the basin. Its 36” x 60” basin is made of fiberglass. The GPM performance of this Liberty D3660LSG203-24 Duplex Grinder Package is indicated in the spec sheet. It features a piggyback plug with wide angle float switch. This pump comes with a quick-disconnect 25’ cord for fast replacement of the power cord without breaking the seals to the motor. It also comes with the standard AE34=3-511 control panel which can be upgraded to the new IP-Series or the Intelligent Panel. For more details, you can refer to the specification sheet. This Liberty D3660LSG203-24 Duplex Grinder Package is covered by a 3-year warranty. This product bears the CSA mark for meeting the standards. Liberty Pumps is a leading U.S. manufacturer of pumping products for water transfer, wastewater removal and various other applications.

Manufacturer: Liberty Pumps
Mpn # D3660LSG203-24
Weight 499.00 lbs.
  • Integral check valves
  • QuickTree® pre-mounted float system for pump control and alarm
  • 4-inch inlet hub with rubber pipe seal
  • 2-inch discharge
  • Factory pre-assembled guide rail system
  • Galvanized guide rail piping (stainless optional)
  • Factory pre-assembled schedule 80 PVC discharge piping with ball valves
  • Fiberglass basin with anti-flotation collar
  • Standard green fiberglass cover, solid (optional black steel, solid )
  • All stainless steel supports and brackets pre-mounted
  • NEMA 4X junction box for electrical connections, pre-mounted
  • Stainless steel chain for pump lift-out
