Liberty LEH102M3 Liberty LEH102M3 Submersible Sewage Pump

Liberty LEH102M3 Submersible Sewage Pump

SKU: 72284
 Free Shipping!
Save 25% · Retail: $1,287.00

  Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Liberty LEH102M3

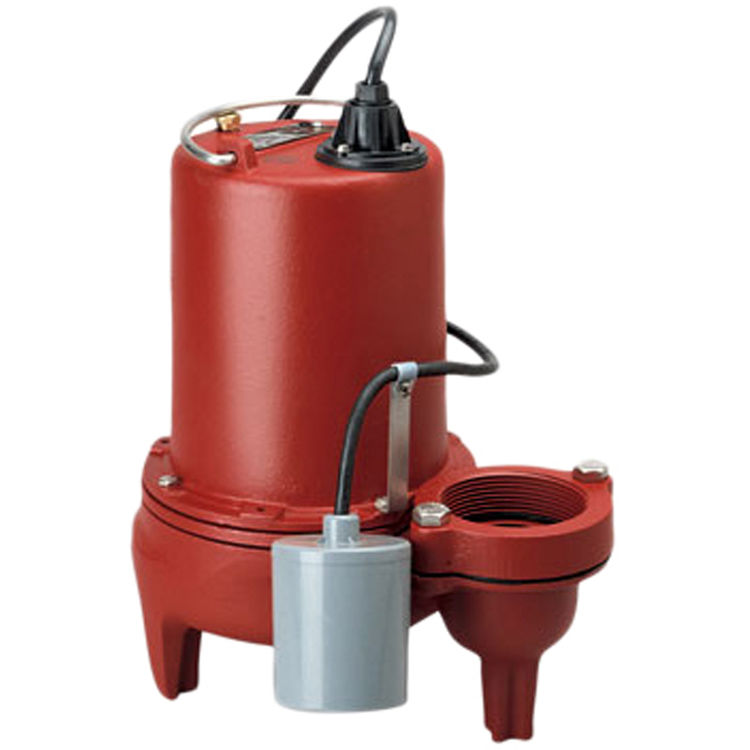

The Liberty LEH102M3 is a submersible sewage pump. This heavy-duty pump is used for commercial and residential sewage applications. It has a 1 hp oil-filled motor with thermal overload protection. The voltage needed to run this pump is 230V single phase. It has a 3" flanged discharge and it can handle up to 2" solids. The GPM performance of this Liberty LEH102M3 Sewage Pump is 195 GPM at 15' head and 143 GPM at 30' head. This pump requires a minimum application of 15' head. It comes with a quick-disconnect 10' cord for fast replacement of the power cord without breaking the seals to the motor. It has a cast iron housing and a 2-vane semi-open impeller. For more details, you can refer to the specification sheet. This Liberty LEH102M3 Submersible Sewage Pump is covered by a 3-year warranty. This product bears the CSA mark for meeting the standards. Liberty Pumps is a leading U.S. manufacturer of pumping products for water transfer, wastewater removal, and various other applications.

Manufacturer: Liberty Pumps
Pump Type: Submersible Pump
Mpn # LEH102M3
Shipping Dimensions 19.0" x 14.0" x 11.0"
Weight 67.85 lbs.
  • Rugged 2 vane, semi-open cast iron impellers
  • Cast iron housings and volute with all stainless steel and brass fasteners
  • 17-4 PH stainless steel shaft
  • Oil-filled, hermetically sealed motors
  • Built-in thermal protection on single phase models
  • 3" flanged discharge
  • Permanently lubricated upper and lower ball bearings
  • Unitized shaft seals
  • Single float mechanical level control with series plug for manual bypass operation standard on single-phase automatic models
  • Adjustable pumping range
  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor
