Liberty LSGX202-RE Liberty LSGX202-RE Omnivore Grinder Pump

Liberty LSGX202-RE Omnivore Grinder Pump

SKU: 55617

This product is not currently available for purchase.

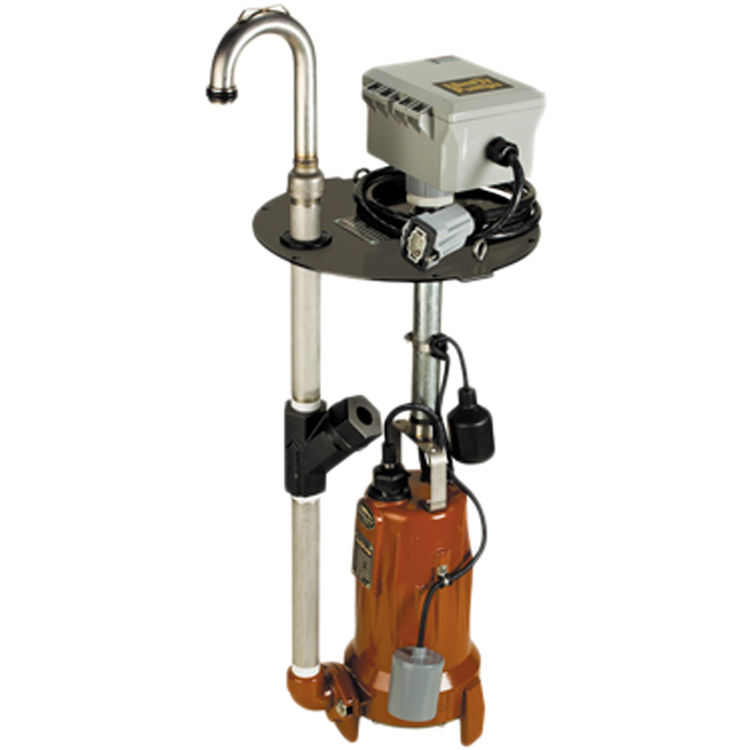

About the Liberty LSGX202-RE Omnivore Grinder Pump

The Liberty LSGX202-RE Omnivore Grinder Pump is a factory pre-assembled single stage grinder replacement package for the GP200 and GP2000. It is a powerful submersible pump capable of answering the demanding task of handling difficult solids, meeting the needs of both commercial and residential sewage applications. It is recommended for homes, motels, schools, malls, and other developments that require high pressure sewage pumping. It can be accommodated within any number of tank sizes and can be used as replacement for an old pump or for a newly assembled sewage system. The pump has a discharge size of 1-1/4” NPT. It is run by a 2 hp, heavy-duty, oil-filled motor. The voltage needed to run the pump is 208-230V single phase. It comes with an 8’ quick-disconnect power cord. The pump's performance data and other details are available in the specification sheets. This Liberty LSGX202-RE Omnivore Grinder Pump is automatic. It comes with an alarm float that sounds an alarm and activates a pump when there is a main switch failure. This same float also works as an β€œon” float. It features 6 square hooded connectors. Its discharge height can be adjusted easily. Its anti-siphon check valve is made of heavy-duty cast iron. It boasts a superior cutting system. The cutting system is made of Rockwell C 58, made of hardened 440 stainless steel, which enables shearing of solids into smaller particles before being discharged. It utilizes the V-Slice Technology, which cuts using the V-pattern, providing up to 108 different cuts per revolution. It utilizes exclusion cleanout slots and back relief that removes debris stuck under the cutter, eliminating the possibility of clogging. More details are available in the specification sheets. The Liberty LSGX202-RE Omnivore Grinder Pump is covered by a standard Limited Warranty for a period of 3 years. This product proudly bears the CSA mark and is recognized for meeting the required environmental performance standards. Liberty, the company that makes and innovates high quality pumps is relied on by hundreds of professional contractors each day. Liberty has been cited as one of Rochester's Top 100 Companies for twelve years.

Manufacturer: Liberty Pumps
Pump Type: Grinder Pump
Mpn # LSGX202-RE
Weight 129.00 lbs.
  • Liberty’s 2 hp Omnivore grinder pump - available in single stage or two stage
  • Fully assembled and ready to drop-in-place
  • IP68 Waterproof junction box contains motor contactor and terminal strip
  • Sealed 6 pin, quick-connector with 8’ cable lead plugs into existing E/One connector. Both old style and new hooded connectors available (see models selection)
  • eavy-duty cast iron anti-siphon check valve
  • Includes floats, piping and replacement cover
  • Alarm float works as a redundant ON float. Will sound alarm and activate pump in the event of a main switch failure
  • Stainless steel piping and discharge elbow is easily adjusted for proper engagement to the receiver
  • Original equipment manual over-ride switch remains operable
