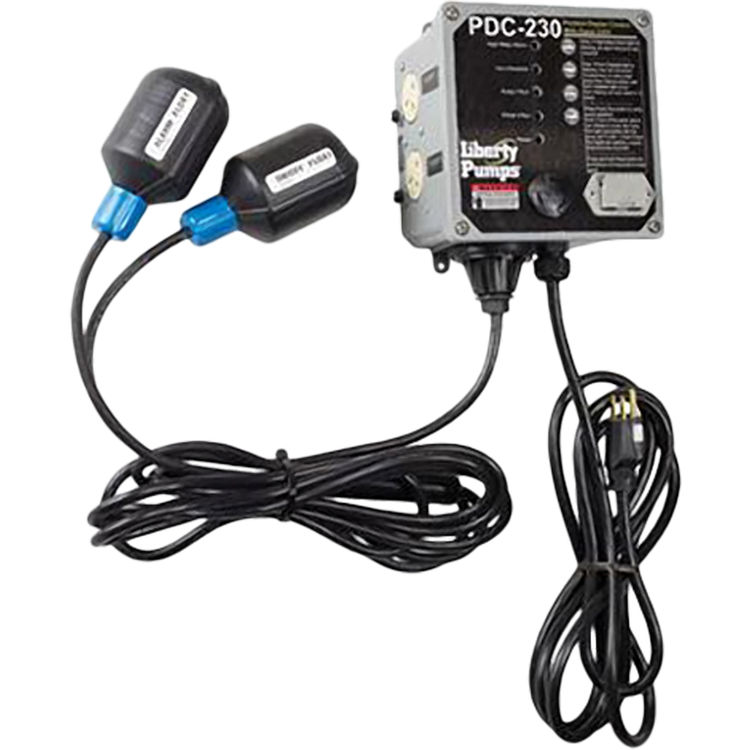

Liberty Pumps PDC-230 Control Panel for Duplex Package Pumps (230V)(10' Cord)

SKU: 279898

Was: $ 535.50/ ea
See Sale Price in Cart
Retail: $765.00

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
See In Cart

About the Liberty

Liberty PDC-230 PDC-Series Duplex Control Panel 230V 10' Cord. This 230 Volt PDC panel is specifically designed for the control and operation of two ProVore P68 Grinder Pumps. The PDC-230 system generally includes a primary pump and secondary pump, and control and alarm floats. The 5 LED indicators give you a visual view of the power, run status, alarm, and the horn enable/disable status. Operator push-button controls are available to manually run the pumps, to manually and to test the alarm or disable and enable the alarm. Each of the two pumps are connected to thier own reset fuse to isolate the failed pump.

Product Details

Product: Controller
Type: Duplex Package
Electrical Voltage: 220-240 Volt
Weight 8.00 lbs.

Product Features

  • Receptacles are angled to accept standard or right-angled plugs
  • Programmed automatic hour run limiter protects against run-dry or runaway pump conditions
  • Specifications----
  • Hertz: 60
  • Voltage: Voltage close Voltage, or volts, is measurement of the difference between two electric fields (in heating terms, the difference between the Earth's electrical field and the electricity running through your wires). 230v
  • Cord Length: 10 ft
  • Phase: 1
  • Weight (lbs): lbs
  • Features----
  • NEMA indoor rated enclosure
  • Automatically alternates pump operation equalizing wear and extending pump life
  • Plug-in ready wiring for easy and quick installation
  • PRG-Series residential grinders can be used as-replacement pump in 2 inch discharge systems using LE40 and LE50-series solids-handling pumps.
  • Factory wired floats with quick-disconnect at box
  • Green power indicator
  • Green pump run indicators
  • Audible and visual alarm
  • NEMA 1 indoor rated enclosure
  • Receptacles are angled to accept standard or right-angled plugs
  • Programmed automatic 6 hour run limiter protects against run-dry or runaway pump conditions
  • Automatically alternates pump operation equalizing wear and extending pump life
  • Plug-in ready wiring for easy and quick installation
  • 10 - 25 Inch cord lengths available
  • Factory wired floats with quick-disconnect at box
  • Green power indicator
  • Green pump run indicators
  • Audible and visual alarm
  • 9 volt alarm back-up
