Little Giant 511584 Little Giant 511584 ES60D2-20 Wastewater Pump

Product Options

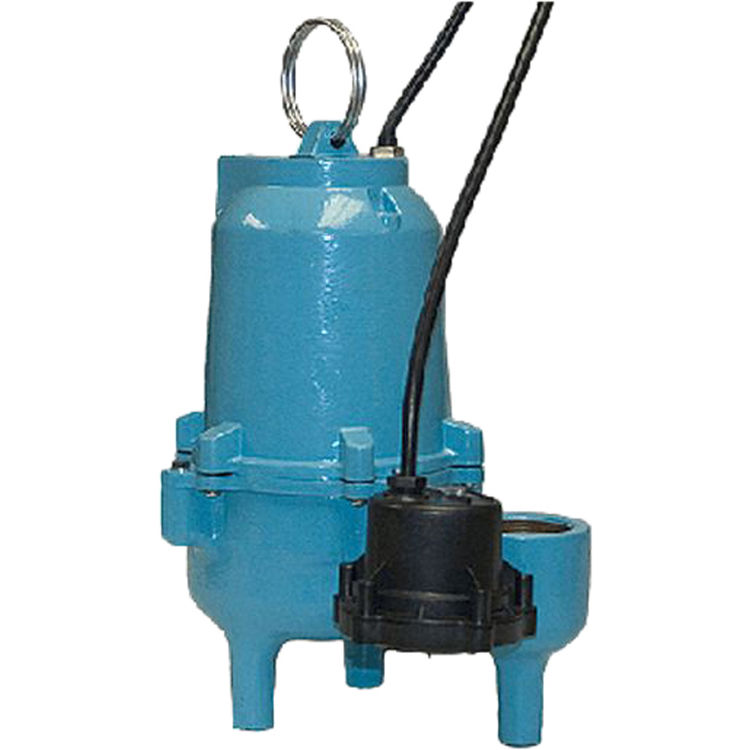

Little Giant 511584 ES60D2-20 Wastewater Pump

SKU: 105023
$ 513.16 / ea
Save 45% · Retail: $934.00

  Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Little Giant 511584

The Little Giant 511584 ES60D2-20 is a submersible wastewater pump. It is designed for sewage and effluent wastewater transfer. This pump has a discharge size of 2" (51 mm) and it can handle up to 2" solids. It has a 6/10 hp permanent split capacitor (PSC) motor with thermal overload protection. This Little Giant 511584 ES60D2-20 Wastewater Pump can pump 155 GPM at 5' head pressure and up to 29 GPM at 25' head pressure. It features a vertical diaphragm switch. This pump comes with a 20' cord. The voltage needed to run this pump is 230V single phase. Both of its motor housing and impeller are epoxy-coated cast iron. For more details, you can refer to the specification sheet. The Little Giant 511584 ES60D2-20 Wastewater Pump is covered by a limited warranty for a period of 24 months. This product is certified by SSPMA for meeting the standards. Little Giant has proven their excellence for over 70 years by producing reliable pump solutions, packaged system options, and accessories.

Manufacturer: Little Giant
Product: Sewage Pump
Material: Cast iron
Pressure Rating: 12.1 PSI
Voltage: 115
Discharge Size: 2"
Mpn # 511584
Weight 63.00 lbs.
  • Powerful, 6/10 HP Permanent Split Capacitor (PSC) motor for high starting and running torque, with low amp draw to conserve electrical energy
  • Two-vane, non-clog cast iron impeller with pump-out vanes to help protect seal; will pass 2" spherical solids
  • Bearings: Upper and lower ball bearings for extended motor life
  • Mechanical seal (stainless steel spring, nitrile parts, carbon and ceramic faces) to assure maximum protection against pump failure
  • Rugged cast iron pump housing with epoxy coating for corrosion resistance
  • 2" and 3" FNPT discharge flanges included
  • Oil-filled motor housing for lifetime bearing lubrication and maximum heat dissipation
  • Stainless steel hardware to protect against corrosion
  • Thermal overload protection
