Little Giant 553201 VCL-24ULS Condensate Removal Pump

SKU: 105244

Save 56% · Retail: $215.00

  Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Little Giant 553201

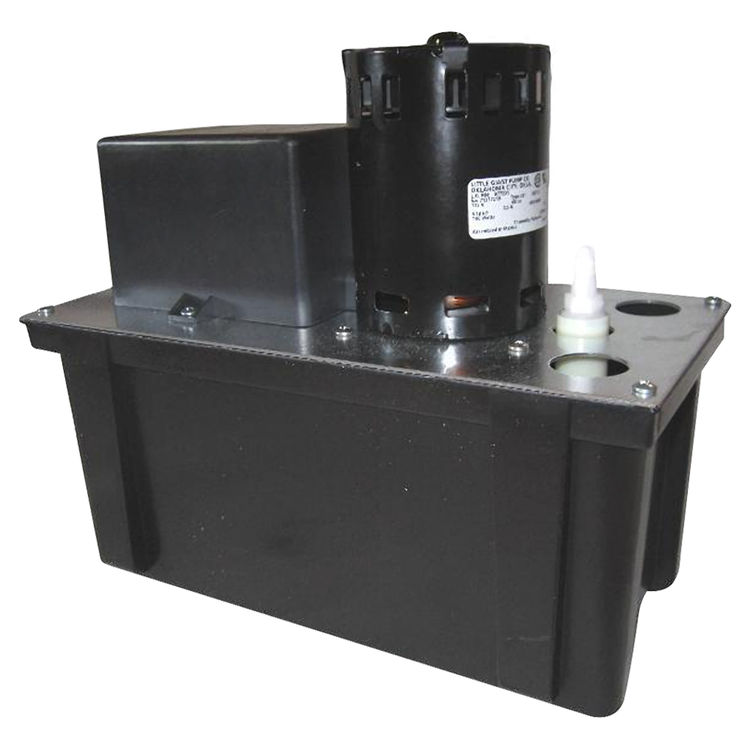

The Little Giant 553201 VCL-24ULS is a condensate removal pump. It collects condensate from an HVAC system and pumps it to the drainage system. This pump has a discharge size of 1/4" FNPT x 3/8” OD barbed. It has a 1/18 hp thermally protected motor. This Little Giant 553201 VCL-24ULS Condensate Removal Pump can pump 270 GPH at 1’ head pressure and up to 210 GPH at 9’ head pressure. It features a safety float switch which turns the pump on and off whenever the water in the pump reaches a certain pre-set level. This pump comes with a 6’ cord. The voltage needed to run this pump is 115V single phase. It features a galvanized steel tank cover and a stainless steel motor shaft. Its impeller is made of polypropylene. For more details, you can refer to the specification sheet. The Little Giant 553201 VCL-24ULS Condensate Removal Pump is covered by a limited warranty for a period of 24 months. This product bears the CSA mark for meeting the standards. Little Giant has proven their excellence for over 70 years by producing reliable pump solutions, packaged system options, and accessories.

Product Details

Manufacturer: Little Giant
Mpn # 553201
Weight 8.20 lbs.

Product Features

  • 1 gallon collection tank
  • Vertical centrifugal pump design
  • Automatic start and stop operation
  • Some models equipped with float (solid polymer) activated switch for automatic high level water detection (safety overflow switch)
  • For models with safety overflow switch: dual function NO and NC operation (set to NO from factory for equipment shut down connection)
  • Models equipped with safety overflow switch include two 5 switch lead wires
  • 1/4 NPT x 3/8 barbed discharge adapter (for use with 3/8 I.D. vinyl tubing)
  • Two 1-1/8 diameter inlet openings
  • Thermally protected, fan cooled motor
  • Maximum water temperature: 120 F
  • 6 ft 3-conductor cable with grounded 3-prong plug
