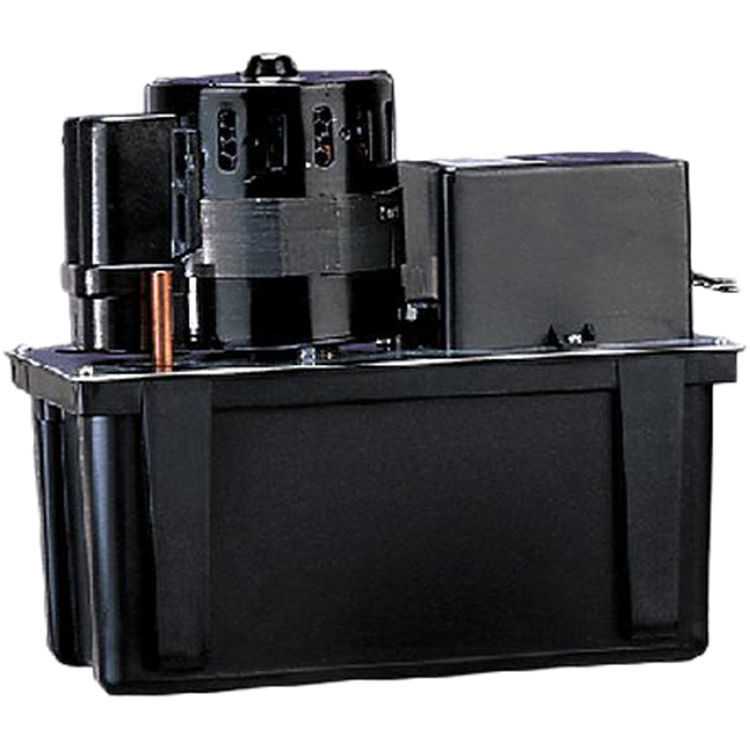

Little Giant 553245 VCL-45ULS Condensate Removal Pump

SKU: 105248

$247.06/ea
Save 54% · Retail: $535.00

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$247.06/ea

About the Little Giant 553245

The Little Giant 553245 VCL-45ULS is a condensate removal pump. It collects condensate from an HVAC system and pumps it to the drainage system. This pump has a discharge size of 3/8”. It has a 1/5 hp thermally protected motor. This Little Giant 553245 VCL-45ULS Condensate Removal Pump can pump 450 GPH at 1’ head pressure and up to 380 GPH at 15’ head pressure. It features a safety float switch which turns the pump on and off whenever the water in the pump reaches a certain pre-set level. This pump comes with a 6’ cord. The voltage needed to run this pump is 230V single phase. It features galvanized steel tank cover and a stainless steel motor shaft. Its impeller is made of polypropylene. For more details, you can refer to the specification sheet. The Little Giant 553245 VCL-45ULS Condensate Removal Pump is covered by a limited warranty for a period of 24 months. This product bears the CSA mark for meeting the standards. Little Giant has proven their excellence for over 70 years by producing reliable pump solutions, packaged system options, and accessories.

Product Details

Product:
Manufacturer: Little Giant
Type: Pumps
Style:
Mpn # 553245
Weight 14.00 lbs.

Product Features

  • 1 gallon collection tank
  • Vertical centrifugal pump design
  • Automatic start and stop operation
  • Includes float (solid polymer) activated switch for automatic high level water detection (safety overflow switch)
  • Safety overflow switch: dual function NO and NC operation (set to NO from factory for equipment shut down connection)
  • Safety overflow switch includes two 5 switch lead wires
  • 3/8 copper tube discharge (for use with 3/8 I.D. vinyl tubing)
  • Two 1-1/8 diameter inlet openings
  • Thermally protected, fan cooled PSC-motor
  • Maximum water temperature: 120 F
  • 6 ft 3-conductor cable with grounded 3-prong plug
