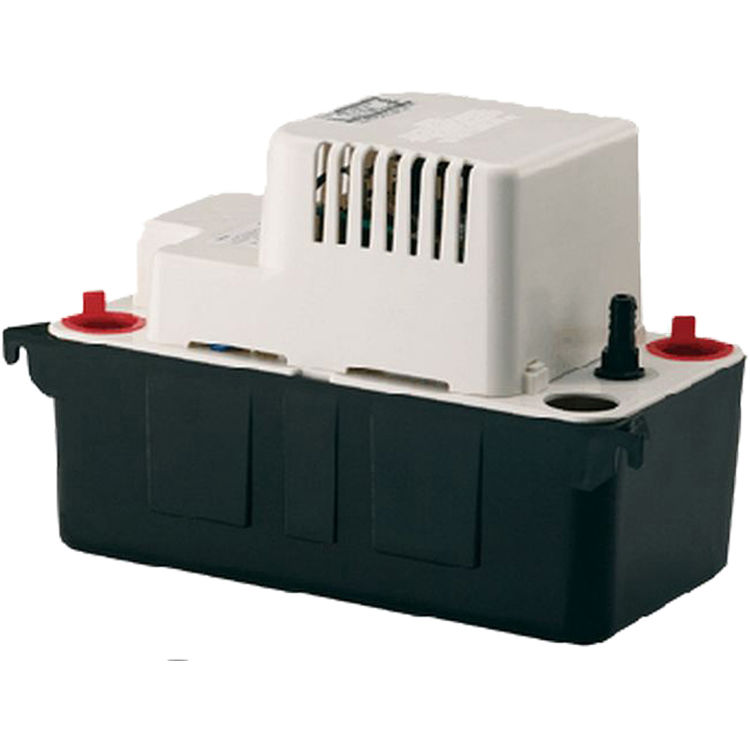

Little Giant VCMA-20ULT 554431 Condensate Removal Pump

SKU: 105267

Save 57% · Retail: $103.00

  Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Little Giant 554431

The Little Giant VCMA-20ULT 554431 Condensate Removal Pump is designed to remove the condensate from an air conditioner when drainage by gravity is not possible. It is also useful for high efficiency condensing furnaces and boilers. The pump has a discharge size of 3/8” OD Barbed. It has a 1/30 hp high performance motor. This Little Giant VCMA-20ULT 554431 Condensate Removal Pump has a ½ gallon tank capacity and can pump up to 80 GPH at 1' head pressure and up to 48 GPH at 10’ head pressure. It comes with a 6’ cord. The needed voltage to run this pump is 115V single phase. It also includes a removable 3/8” barbed check valve and a 20’ of 3/8” ID tubing. It has 3 inlet drain holes. More details are available in the specification sheets. The Little Giant VCMA-20ULT 554431 Condensate Removal Pump is covered by a Limited Warranty for a period of 12 months from date of purchase. This product proudly bears the CSA mark and is recognized for meeting the required environmental performance standards. Little Giant and its parent company, Franklin Electric, have been making pumps for over 70 years. The quality, durability and dependability of their products have made them a world leader in pumps of virtually every variety.

Product Details

Manufacturer: Little Giant
Mpn # 554431
Weight 6.00 lbs.

Product Features

  • 1/2 gallon collection tank
  • Vertical centrifugal pump design
  • Automatic start and stop operation
  • Models equipped with safety overflow switch include two 5 switch lead wires
  • 3/8 O.D. barbed discharge adapter with built-in check valve
  • Three 1-1/8 diameter inlet openings (two fitted with removable cap plug)
  • Thermally protected, fan cooled motor
  • Built-in wall mount tabs on tank
  • Removable pump float locking tab for safety during transportation (remove at time of installation)
