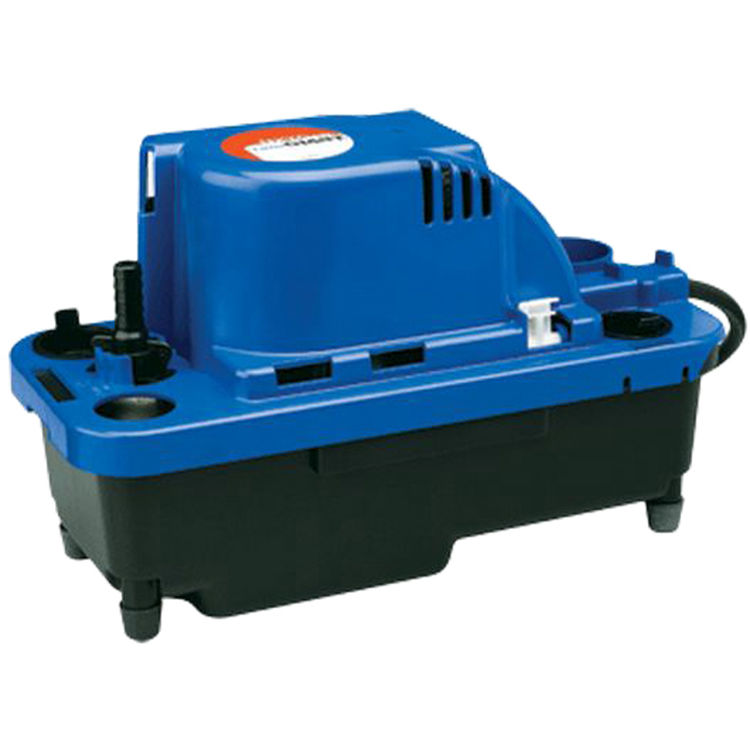

Little Giant 554521 VCMX-20UL Condensate Removal Pump

SKU: 105280
Save 46% · Retail: $107.00

   Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Little Giant 554521

The Little Giant 554521 VCMX-20UL is a condensate removal pump. It collects condensate from an HVAC system and pumps it to the drainage system. This pump has a discharge size of 3/8”. It has a 1/30 hp motor. This Little Giant VCMX-20UL Condensate Removal Pump can pump 78 GPH at 1’ head pressure and up to 29 GPH at 15’ head pressure. This pump comes with a 6’ cord. The needed voltage to run this pump is 230V single phase. It features a galvanized steel wall mounting bracket which is designed for a more simple installation and comes with rubber feet to dampen sound and vibration while in use. For more details, you can refer to the specification sheet. The Little Giant VCMX-20UL Pump is covered by a limited warranty for a period of 24 months. This product bears the CSA mark for meeting the standards. Little Giant has proven their excellence for over 70 years by producing reliable pump solutions, packaged system options, and accessories.

Product Details

Manufacturer: Little Giant
Type: Pumps
Mpn # 554521
Weight 5.00 lbs.

Product Features

  • External test/run lever
  • Slim footprint
  • Vertical centrifugal pump design
  • Automatic start and stop operation
  • Galvanized steel quick install wall mount bracket
  • 3/8 O.D. barbed -turn quick release, locking discharge adapter with built-in check valve
  • Rubber feet for vibration/noise dampening
  • Anti-sweat tank sleeve included on select models and available separately for all others
  • 3 - 1-1/8 diameter inlet openings, two fitted with removable cap plug (3 + 1 inlet openings for models without safety overflow switch)
  • Recessed tank sump
  • Oil resistant tank and check valve
  • Thermally protected, fan cooled motor
  • Maximum water temperature: 140 o F
  • 6', 3-conductor cable with grounded 3-prong plug
