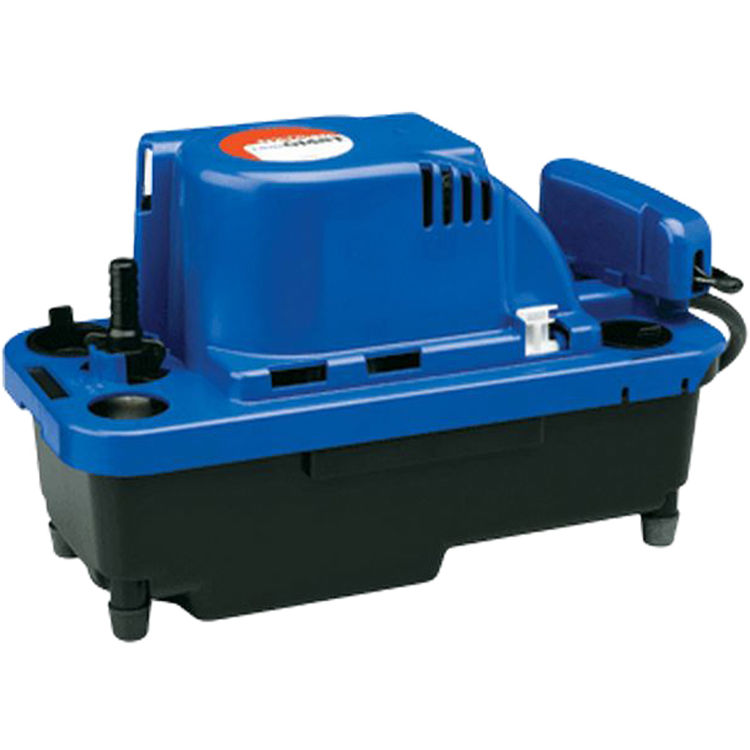

Little Giant 554542 VCMX-20ULS-C Condensate Removal Pump

SKU: 105286
Minimum Quantity: 1

$61.89/ea
Save 46% · Retail: $114.00

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$61.89/ea

About the Little Giant 554542

The Little Giant 554542 VCMX-20ULS-C is a condensate removal pump. It collects condensate from an HVAC system and pumps it to the drainage system. This pump has a discharge size of 3/8”. It has a 1/30 hp motor. This Little Giant VCMX-20ULS-C Condensate Removal Pump can pump 84 GPH at 1’ head pressure and up to 10 GPH at 20’ head pressure. It features a safety float switch which turns the pump on and off whenever the water in the pump reaches a certain pre-set level. This pump comes with a 6’ cord. The needed voltage to run this pump is 115V single phase. It features a galvanized steel wall mounting bracket which is designed for a more simple installation and comes with rubber feet to dampen sound and vibration while in use. For more details, you can refer to the specification sheet. The Little Giant VCMX-20ULS-C Pump is covered by a limited warranty for a period of 24 months. This product bears the CSA mark for meeting the standards. Little Giant has proven their excellence for over 70 years by producing reliable pump solutions, packaged system options, and accessories.

Product Details

Product:
Manufacturer: Little Giant
Type: Pumps
Style:
Mpn # 554542
Weight 5.50 lbs.

Product Features

  • External test/run lever
  • Slim footprint
  • Vertical centrifugal pump design
  • Automatic start and stop operation
  • Galvanized steel quick install wall mount bracket
  • Safety overflow switch: dual function NO and NC operation (set to NO from factory for equipment shut down connection)
  • Includes two 5 switch lead wires
  • 3/8 O.D. barbed -turn quick release, locking discharge adapter with built-in check valve
  • Rubber feet for vibration/noise dampening
  • Anti-sweat tank sleeve included
  • 3 - 1-1/8 diameter inlet openings, two fitted with removable cap plug (3 + 1 inlet openings for models without safety overflow switch)
  • Recessed tank sump
  • Oil resistant tank and check valve
  • Thermally protected, fan cooled motor
  • Maximum water temperature: 140 o F
  • 6', 3-conductor cable with grounded 3-prong plug
