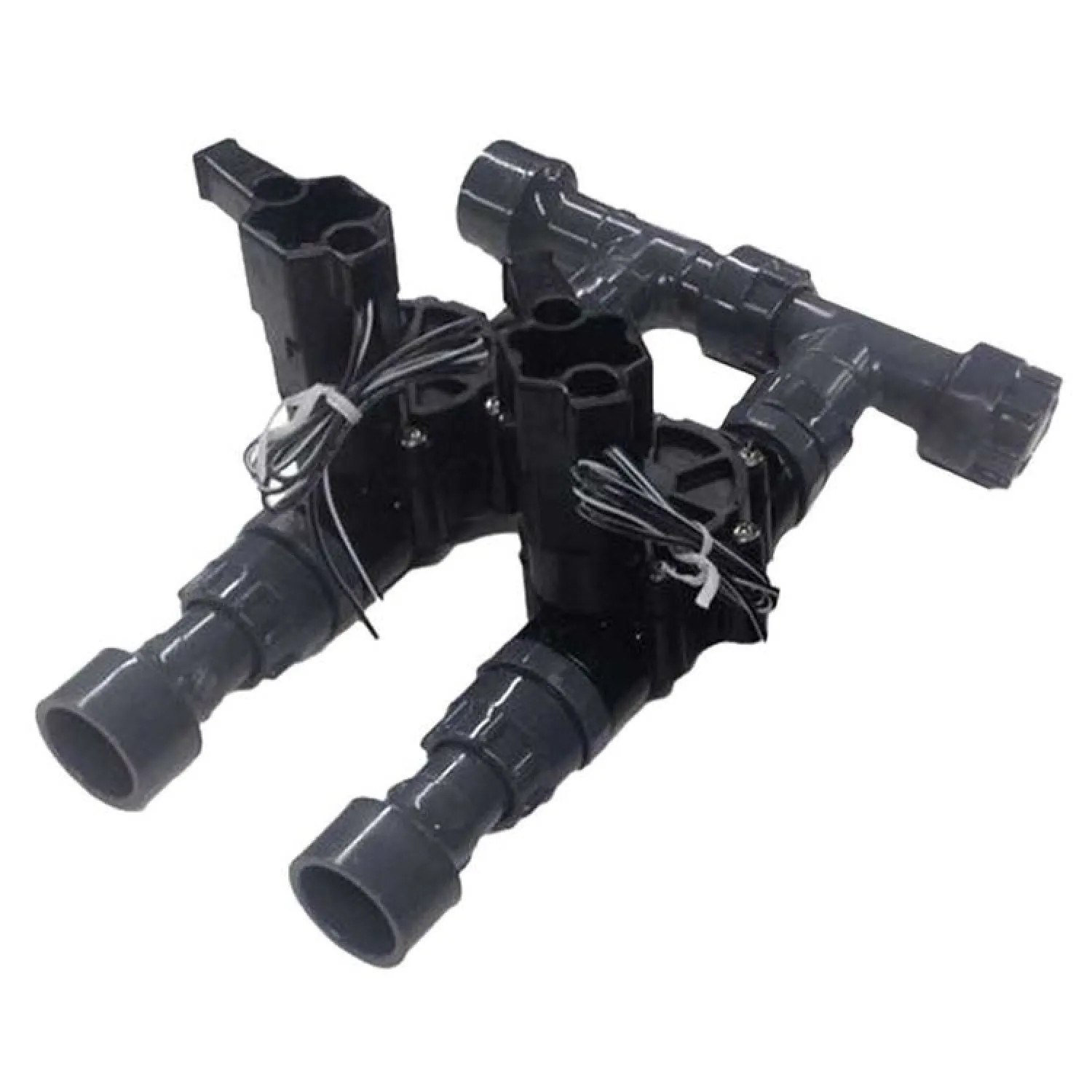

Rainbird 100DVF-DMF2 Valve with Dura 1" Manifold

SKU: 108544
   based on 2 Reviews
$48.78/ea
Save 44% · Retail: $86.65

In Stock and Ready to Ship
More Buying Options


Ships From Price Qty
Nevada Warehouse
Available to Ship in 3-5 days
$48.78/ea 36
Order From Manufacturer
Available to Ship in 6-8 weeks
$48.78/ea

About the Pstock MANIFOLD2100DVF

Expand your sprinkler zones with this Rainbird 100DVF valve with the Dura DMF2 1" manifold in a 2-valve setup. With this setup, you don't have to stress yourself in choosing a valve and a manifold separately.

Rainbird's 100DVF series comes with features beneficial to your sprinkler system and, along with the Dura 1" manifold, will surely increase the lifespan and decrease maintenance of your sprinkler system. The Rainbird 100DV offers a low-power encapsulated solenoid which improves energy-efficiency without decreasing performance and a balanced-pressure diaphragm (Buna-N) for added durability. It's Buna-N diaphragm comes with a 200-micron self-cleaning water filter pilot and captive spring which reduces downtime due to dirt in the system. Dirt and debris can easily be removed thanks to its external bleed flushing capabilities. Optimum reliability is assured by a double-filtered pilot-flow design, an internal bleed for spray-free manual operation, and can even operate in Xerigation and low-flow applications when the RBY filter is installed upstream.

The DVF Series also enjoys Rainbird's latest innovations like the patented easy-to-turn pressure assisted flow control mechanism which is designed for optimal flow control, giving you more options in setting up your sprinkler system.

Rainbird and Dura are both tested and proven products in their respected field, and PlumbersStock has seen it fit to pair those products together to create a ready-to-use, already-assembled sprinkler valve manifold for you. No hustle and less trouble.


Product Details

Product: Manifold
Trade Tools: Landscape & Garden
Type: Valve Set
Color: Black
Mpn # MANIFOLD2100DVF
Weight 4.50 lbs.

Product Features

  • Makes installing and/or repairing valves easy
  • Eliminates need to cut and re-glue sections of pipe to rebuild damaged manifolds or valves
  • All fittings include o-rings so there is no need to use teflon or pipe dope on each connection
  • 2-valve manifold setup
  • 1 in. (26/34) standard in-line configuration
  • Unique, easy-to-turn patented pressure assisted flow control mechanism
  • Double-filtered pilot-flow design for maximum reliability
  • Balanced-pressure diaphragm for long life
  • External bleed to manually flush system of dirt and debris during installation and system start-up
  • Internal bleed for spray-free manual operation
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
  • Works with any standard sprinkler timer
  • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
  • Operates in low-flow and Xerigation applications when the RBY filter is installed upstream
  • 1.25 in. (3,2 cm) stainless steel phillips head screws
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers
  • 0.2 to 40 gpm
  • Unique, easy-to-turn patented pressure assisted flow control mechanism (DVF models only)

Reviews

Rated 4.5 out of 5 based on 2 reviews


 Rated 4 by Kirk M.

Originally posted on plumbersstock.com Sep/2016

 Rated 5 by Randall G.
I love these manifold sets. I'm replacing my old 1970's sprinkler system and these will be much easier to maintain. If a valve goes bad I can remove it and work on it above ground. If I want to add a zone I simply buy another section and screw it on to the last one. Great design and PlumbersStock.com has the best prices!!!
Originally posted on PlumbersStock Jun/2017
