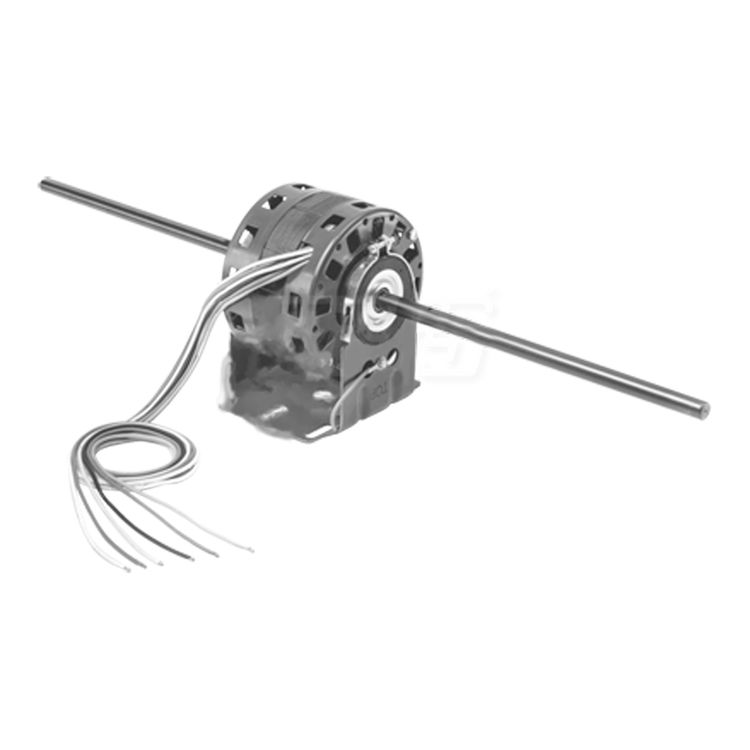

Mars 10889 Shaded Pole Direct Drive Motor 1/10 HP 1050 RPM 5SPD F/C MTR

Name: Mars 10889 Shaded Pole Direct Drive Motor 1/10 HP 1050 RPM 5SPD F/C MTR
Brand: Mars
SKU: 245359

SKU: 245359

We are Sorry we no longer carry this item.

Check below for similar items!

About the Mars 10889

About the Mars 10889 Shaded Pole Direct Drive Motor 1/10 HP 1050 RPM 5SPD F/C MTR

Get this discount Mars 10889 Shaded Pole Direct Drive Motor 1/10 HP 1050 RPM 5SPD F/C MTR online at PlumbersStock. This Shaded Pole Direct Drive Motor is manufactured with integrity. Mars has a strong reputation in the heating and cooling industry for quality manufacturing.

As the manufacturer describes it, Capacitor Type Motor Start Shape Round MFD Rating 64-77 Voltage 220/250 Width Inches 1.81 Hz 50/60 Case Height Inches 3.38 Overall Height Inches 3.38 Temp Range -40C to 65C Terminals 2 Case Construction Phenolic Starts Per Hour 40

Product Details

Manufacturer:	Mars
Mpn #	10889
Weight	10.15 lbs.

Product Features

Motor Type Shaded Pole Enclosure Open H.P. (Max.) 1/10 Voltage 115 Speeds 5 Hz 60 Rotation CW RPM Range 1050/5 NEMA Frame Size 5 Phase Single Standards UL FLA 3.5 Mount Rigid Base Bearing Sleeve Shaft Length Inches 10.29 Shaft Dia Inches 1/2 Thermal Protection Auto Ambient Deg C 40 Notes3 Double Shaft Output, 5 Speed Terminals Without Ins Ins. Class Class B Capacitor Included No

Resources

Specification sheet
