Metal-Fab 4P24 Metal Fab 4P24 4 Biomass Chimney L Vent Galvanized 24

Metal Fab 4P24 4 Biomass Chimney L Vent Galvanized 24" Pipe

SKU: 209735

This product is not currently available for purchase.

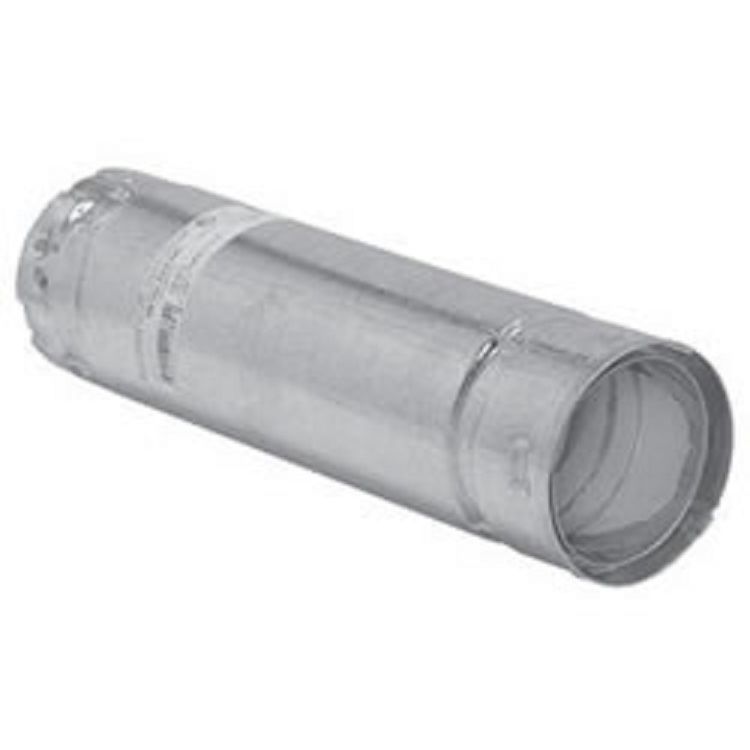

About the Metal Fab 4P24 4 Biomass Chimney L Vent Galvanized 24" Pipe

The Metal-Fab 4P24 is an L-vent round chimney pipe with a galvanized steel casing. It has a hemmed casing and flue, designed with a galvanized exterior jacket and a stainless inner liner. This product is adjustable, durable and ideal for construction and commercial applications. It can withstand rigorous use and has a sleek design that is portable and easy to apply. This pipe is 4” in diameter and 24” in length (refer to the specification sheet for further information).The casing is hemmed with a positive twist lock connection. It can be used as a connector or a complete system for oil appliances that are listed as suitable for use with Type L vents. The Metal-Fab 4P24 L-Vent pipe is listed and tested by the Universal Laboratories for venting high efficiency oil appliances with maximum flue temperatures of 570 degrees.

Manufacturer: Metal-Fab
Style: Double Wall
Use: Commercial & Industrial
Color: Galvanized
Mpn # 4P24
Weight 3.00 lbs.
  • Type L Pellet/Corn Chimney
  • Tested and UL 641 Listed.
  • Pipe and fittings in 3" and 4" diameters.
  • Factory-built double wall construction, using 430 stainless steel flue and galvanized steel outer casing.
  • Positive twist lock for easy assembly and disassembly without tools and without damage.
  • Rope gaskets at each joint to prevent fly ash leakage.
  • Pipe overlaps 11/2" when joined together. Assembled length is 11/2" less than listed length.
  • The double wall design enables the product to be used in homes and commercial buildings at close clearance to combustible.
  • ¼ inch insulating air space.
  • Metal-Fab’s design incorporates features that make installation quick, easy, and safe.
  • Eliminates sharp edges by hemming the flue and casing.
