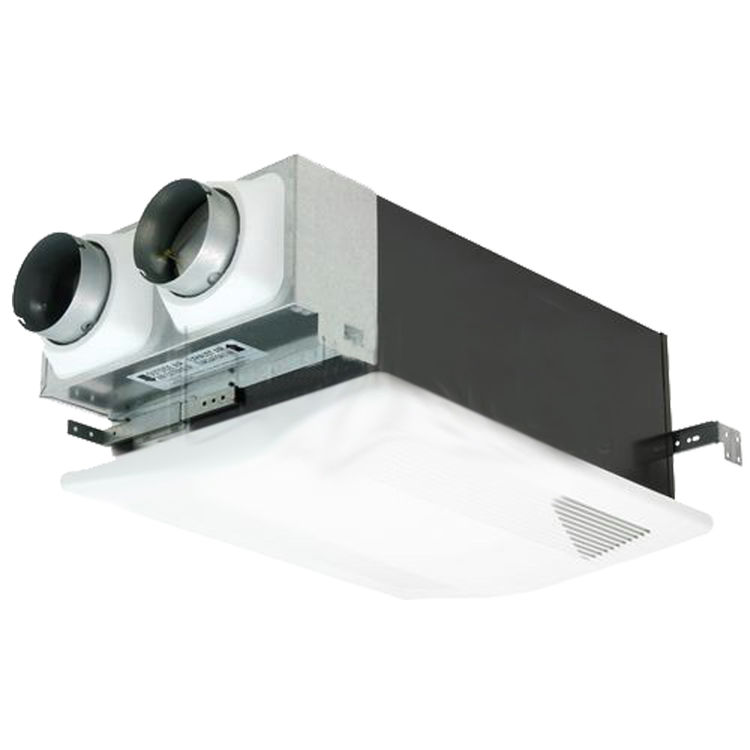

Panasonic WhisperComfort Spot Energy Recovery Ceiling Ventilator for 4" Duct

SKU: 278422
Minimum Quantity: 1
   based on 2 Reviews
$533.30/ea Free Shipping!
Save 22% · Retail: $683.00

See buying options below:



Ships From Price Qty
California Warehouse
Ships in 1-3 Days
$533.30/ea 25
Order From Manufacturer
Available to Ship in 4-5 weeks
$533.30/ea

About the Panasonic FV-04VE1

The pinnacle of ventilation technology and the most comprehensive ventilator on the market, the Panasonic FV-04VE1 Whisper Comfort Spot Energy Recovery Ceiling Ventilator for a 4 In. Duct can't be beat when it comes to providing airflow for your home. completely automated for your convenience, this ventilator is also environmentally responsible.

Product Details

Product:
Manufacturer: Panasonic
Type: Vent Fan
Size:
Room: Bathroom
Mpn # FV-04VE1
Weight 50.00 lbs.

Product Features

  • Mount Opening (inches sq.): 19 1/2" x 14 1/4"
  • Power Rating (V/Hz): 120/60
  • Motor Type: AC Condenser
  • Type of Motor Bearing: Ball
  • Thermal Fuse Protection: Yes
  • Blower Wheel Type: 2 x Sirocco
  • Heating %: 66% @ 30 CFM
  • Cooling %: 36% @ 29 CFM
  • Washington State VIAQ Code: Yes
  • California Title 24 Compliant: Yes
  • Mfg in ISO 9001 Certified Facility: Yes
  • Grille Size (inches sq.): 20 3/4" x 16 3/4"
  • Dimensions (L x W x H): 18 1/2" x 13 1/2" x 7 7/8"
  • Patent-Pending Capillary Core
  • Balanced Air Pressure
  • Static Pressure (in inches w.g.): 0.1
  • Air Volume (CFM): 40 @ 0.1 static pressure / 20 @ 0.1 static pressure / 10 @ 0.1 static pressure
  • Air Volume Supply (CFM): 30 @ 0.1 statistic pressure / 20 @ 0.1 statistic pressure / 10 @ 0.1 statistic pressure
  • Noise (sones): 0.8 @ 40 CFM /
  • Power Consumption (Watts): 23 @ 40 CFM / 21 @ 20 CFM / 17 @ 10 CFM
  • Speed (RPM): 1479 @ 40 CFM / 1292 @ 20 CFM / 1095 @ 10 CFM
  • Current (Amps): 0.15 @ 40 CFM / 0.10 @ 20 CFM / 0.09 @ 10 CFM

Reviews

Rated 5 out of 5 based on 2 reviews


 Rated 5 by Anonymous
I am a HVAC contractor and professional. I use the Panasonic Spot ERV's to meet the 62.2 ventilation standards in Energy Star homes and in many other applications. it's a briliant product that sips energy.
