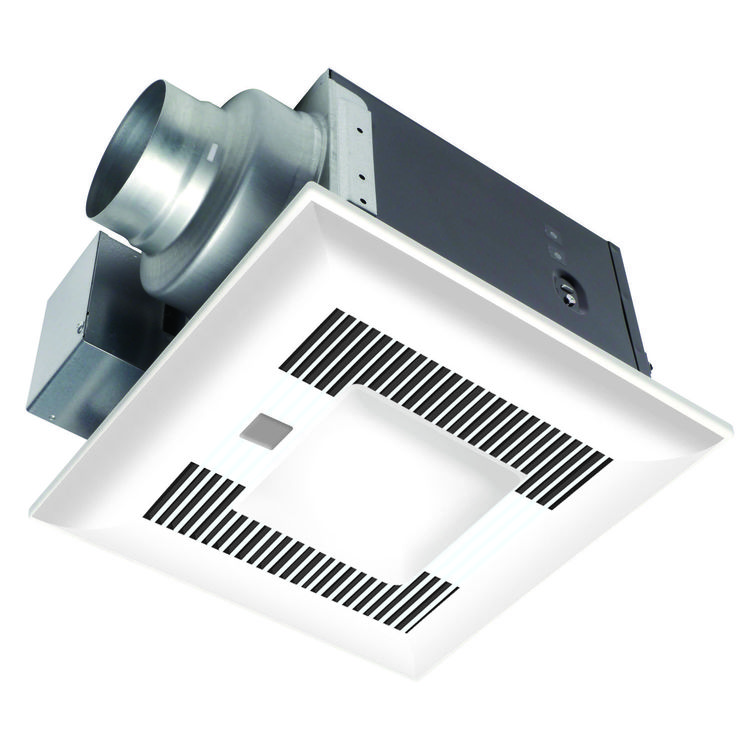

Panasonic FV-08VQCL6 Panasonic FV-08VQCL6 WhisperSense-Lite 80 CFM Bath Fan With Dual Sensor

Panasonic FV-08VQCL6 WhisperSense-Lite 80 CFM Bath Fan With Dual Sensor

SKU: 461808

We are Sorry we no longer carry this item.

Check below for similar items!

About the Panasonic FV-08VQCL6 WhisperSense-Lite 80 CFM Bath Fan With Dual Sensor

The Panasonic FV-08VQCL6 is an 80 CFM Bath Fan with dual sensors. It is from the WhisperSense-Lite series. This is a low-noise ceiling-mounted ventilation fan rated for continuous operation. It has energy-efficient compact fluorescent lighting. It features the SmartMotion motion detect system that turns on the fan automatically when it detects movement in the room. It has also a humidity sensor that turns the fan on when humidity in the room rises above a preset level. The fan will automatically turn off 30 seconds to 60 minutes (adjustable with a delay timer) after the last detected movement. The fan will also turn off when humidity falls below a preset level. This bath fan presents energy-efficient and effective ventilation. Its galvanized steel body is covered with rust-proof painted. It has integrated dual 4” or 6” duct adaptors. For more information about its dimensions, please see the specification sheet. Included are a built-in backdraft damper, an expandable extension bracket up to 24” and a double hanger bar system that allows ideal positioning. HVI-tested data show that this Panasonic FV-08VQCL6 WhisperSense-Lite Fan can produce 80 CFM at less than 0.3 sones of noise, making it virtually noise-free. This Panasonic FV-08VQCL6 WhisperSense-Lite Fan has been certified by the Home Ventilating Institute (HVI) to be Energy Star-rated .It has been evaluated by the Underwriters Laboratories to conform to both UL and cUL safety standards. Has a 3-year warranty from the original date of the purchase. This is an American-made product that we are proud to provide to our customers.

Color: White
Style: Fan Kit
Electrical Voltage: 110-120 Volt
Manufacturer: Panasonic
Mount Type: Ceiling Mount
Room: Bathroom
Use: A/C Only
Mpn # FV-08VQCL6
Weight 10.00 lbs.
  • • Built-in Damper: Yes, to prevent back draft
  • • Galvanized Steel for Long Life: Yes
  • • Double Hanger Bar : Yes
  • • Humidity Sensor: Yes
  • • Motion Sensor: Yes
  • • With Light: Yes - 14.9 Watt Compact Flourescent
  • • Exclusive SmartAction Sensor and RH humidity Sensor Technology reacts to both motion and humidity and turns on the fan automatically
  • • Comes with two 13W self-ballasted GU24 CFL lamps
  • • Features adjustable delay timer set from 30 seconds to 60 minutes
  • • Auto shut-off feature for energy efficiency
  • • Easy installation with double hanger bar system
  • • Rust proof paint treatment on galvanized housing
  • • Built-In Damper to prevent back draft
  • • 4” or 6” dual duct adaptor included
  • • Energy Star Qualified
  • • Air Volume: 80 CFM at 0.1 Static Pressure (59 CFM at 0.25 Static Pressure)
  • • Noise (sones): Less than 0.3 at 80 CFM, Less than 0.3 at 59 CFM
  • • Power Consumption (Watts): 15.8 at 80 CFM, 15.6 at 59 CFM
  • • Energy Efficiency (CFM’s/Watt): 5.1 at 80 CFM, 3.9 at 59 CFM
  • • Current (Amps): 0.14
  • • Power Rating (V/Hz): 120/60
  • • Motor Type: Condenser
  • • Type of Motor Bearing: Ball
  • • Thermal Fuse Protection: Yes
  • • Blower Wheel Type: Sirocco
  • • Duct Diameter (inches): 4”
  • • Mounting Opening (inches sq.): 10 1/4”
  • • Grille Size (inches sq.) : 13”
  • • Dimensions: 10-1/4” x 10-1/4” x 7-1/2”
  • • UL Listed for Tub/ Shower Enclosure: Yes, when used with a GFCI branch circuit wire
  • • Washington State VIAQ Code: Yes
  • • Mfg in ISO 9001 Certified Facility: Yes
  • • Energy Star Qualified: Yes
  • • Rust Proof Paint Treatment: Yes, on galvanized housing
