Rainbird 100DVMB Rainbird 100DVMB 24 VAC 1

Rainbird 100DVMB 24 VAC 1" Electric Control Valve MalexBarb

SKU: 41578
-51.6%
$ 17 .22 / ea
$ 35 .56 / ea
visa mastercard american-express discover paypal crypto
Qty
inventory_2 2 in Stock
add_shopping_cart Add To Cart
local_shipping In Stock and Ready to Ship
warehouse Ships from Cedar City Utah Warehouse
add More Buying Options  from $17.22
Manufacturer
$ 17 .22 / ea
local_shipping Available to Ship in 2-3 weeks
factory Orders from the Manufacturer
inventory_2 Unlimited Availability for Orders
add_shopping_cart Add To Cart
Free Sprinkler Design

About the Rainbird 100DVMB 24 VAC 1" Electric Control Valve MalexBarb

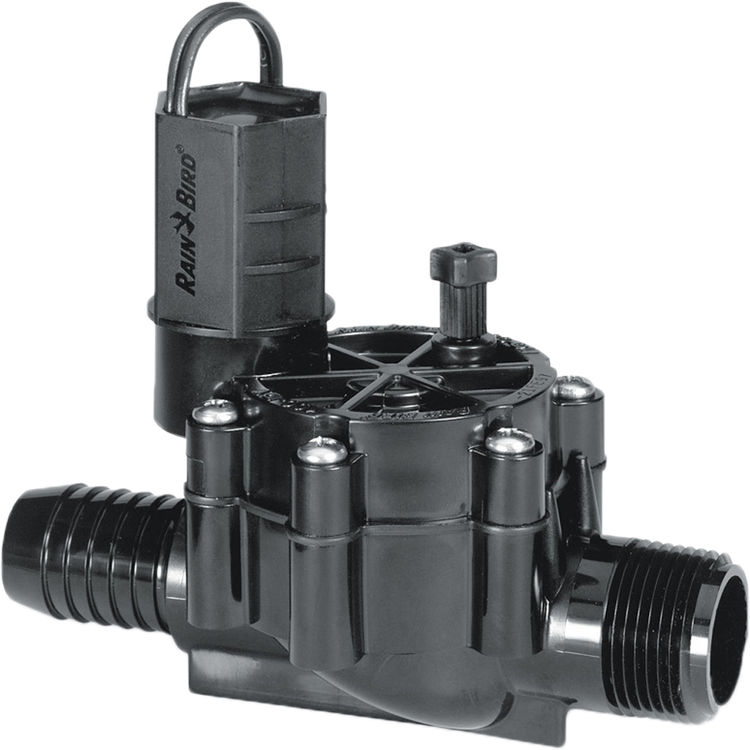

The Rain Bird 100DVMB is a 1" 24V Electric (Male x Barb) Control Valve. It features a double-filtered pilot-flow design for long-lasting reliability, a balanced-pressure diaphragm, external-bleed to manually flush the system of dirt and debris during installation and system start-up. It also features an internal bleed for spray-free manual operation, energy-efficient low-power encapsulated solenoid with a captured plunger, and a 90-mesh solenoid filter.

Manufacturer: Rainbird
Product: Electric Valve
Sprinkler Valve Features: Globe Valve/ Angle Valve
Voltage: 24V
Pressure Rating: 15 PSI
Mpn # 100DVMB
Weight 1.02 lbs.
  • 0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
  • 3/4" (20/27) and 1" (26/34) standard in-line configuration.
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers.
  • Ambient air temperature: Up to 125 Degrees F (52 Degrees C)
  • Available as: 3/4" (20/27) and 1" (26/34) standard in-line configuration. 1" (26/34) Slip-by-Slip (SS) configuration for low cost, solvent-weld installations. 1" (26/34) Angle (A) configurations for flexible installations especially when submains are deep. 1" (26/34) Male-by-Male (MM) thread configuration for quick and easy manifolding. 1" (26/34) Male-by-Barb (MB) and 1" Male-by-1.25" Barb male thread inlet by barb outlet configuration for installation with poly pipe.
  • Balanced-pressure diaphragm for long life.
  • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring.
  • Double-filtered pilot-flow design for maximum reliability.
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter.
  • External bleed to manually flush system of dirt and debris during installation and system start-up.
  • 075-DV Flow: 0.2 to 22 GPM (0,05 to 5,0 m3/h; 0,01 to 1,39 l/s). For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation application, use RBY-075-200MX Filter installed upstream.
  • Height (Angle): 5 1/2" (14 cm)
  • Height: 4 1/2" (11,4 cm)
  • Internal bleed for spray-free manual operation.
  • Length (Angle): 3 3/4" (9,5 cm)
  • Length (MB): 5 3/4" (14,6 cm)
  • Length (MM): 5 3/8" (13,6 cm)
  • Length: 4 3/8" (11,1 cm)
  • Operates in low-flow and Xerigation applications when the RBY filter is installed upstream.
  • Pressure: 15 to 150 psi (1,0 to 10,4 bar)
  • Solenoid coil resistance: 38 Ohms
  • 1" (26/34) Angle (A) configurations for flexible installations especially when submains are deep.
  • Temperature: Up to 110 Degrees F (43 Degrees C)
  • Unique, easy-to-turn patented pressure assisted flow control mechanism (DVF models only).
  • Width: 3 1/3" (8,4 cm)
  • 1" (26/34) Male-by-Barb (MB) and 1" Male-by-1.25" Barb male thread inlet by barb outlet configuration for installation with poly pipe.
  • 1" (26/34) Male-by-Male (MM) thread configuration for quick and easy manifolding.
  • 1" (26/34) Slip-by-Slip (SS) configuration for low cost, solvent-weld installations.
  • 1.25" (3,2 cm) stainless steel phillips head screws.
  • 100-DV Flow): 0.2 to 40 GPM (0,05 to 9,08 m3/h; 0,01 to 2,52 l/s). For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation application, use RBY-100-200MX Filter installed upstream.
  • 100-DVF Flow (non-union): 0.2 to 40 gpm (0,75 m3/h; 0,21 l/s); for flows below 3 gpm or any Xerigation application, use RBY-100-200MX Filter installed upstream.
