Rainbird 100PESB Rain Bird 100PESB - 1

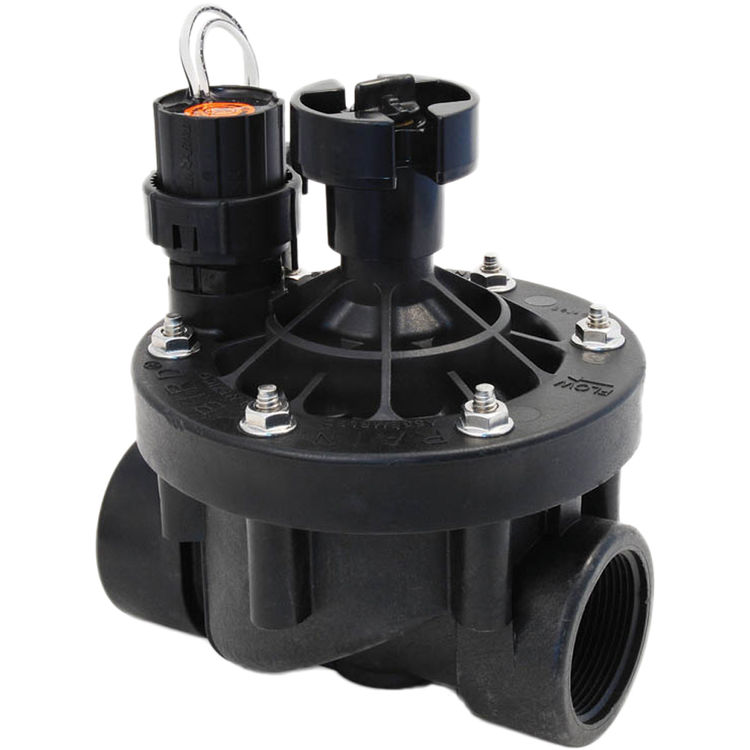

Rain Bird 100PESB - 1" Inlet Inline Plastic Industrial Irrigation Valve

SKU: 40249
$ 123.95 / ea
Save 46% · Retail: $228.25

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"! In Stock and Ready to Ship
More Buying Options


Ships From Price Qty
Spring Valley Nevada Warehouse
Ships in 4-6 days
$123.95/ea 2
Order From Manufacturer
Available to Ship in 2-3 weeks
$123.95/ea

About the Rain Bird 100PESB - 1" Inlet Inline Plastic Industrial Irrigation Valve

Save with a discount price on the Rain Bird 100-PESB 1" Inlet Inline Plastic Industrial Irrigation Valve at PlumbersStock. This valve set features a durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long-lived reliability, a globe configuration, closed, forward flow design, slow closing for preventing the water hammer and subsequent system damage, and a low-flow capability for a wide range of applications.

The Rain Bird 100-PESB is built for reliability with dirty water applications. It also features a single-piece solenoid design with captured plunger and spring for easy servicing; flow control handle adjusts water flows as needed; a manual internal bleed that manually operates the valve without allowing water into the valve box, allowing the pressure regulator to be adjusted without turning the valve on at the controller first; a manual external bleed that permits flushing debris from the system, most recommended for system start up and after repairs; stainless steel studs that are molded into the body, making the bonnet more easily attached and removed with less of a chance of damaging any threads; and a nylon scrubber that scrapes a stainless steel screen to clean and break down any grit and plant material, preventing debris build-up and clogging.

Sprinkler Valve Features: Globe Valve/ Angle Valve
Manufacturer: Rainbird
Mpn # 100PESB
Shipping Dimensions 6.0" x 4.0" x 3.6"
Weight 1.28 lbs.
  • 0.28 A (6.7 VA) holding current
  • Flow control handle adjusts water flows as needed
  • Globe configuration
  • Low flow capability for a wide range of applications
  • Manual external bleed permits flushing debris from the system; Recommended for system start up and after repairs
  • Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first
  • Normally closed, forward flow design
  • Nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material; prevents debris build-up and clogging (PESB Series only)
  • One-piece solenoid design with captured plunger and spring for easy servicing; Prevents loss of parts during field service
  • 0.41 A (9.8 VA) inrush current
  • Slow closing to prevent water hammer and subsequent system damage
  • Solenoid coil resistance: 24 Ohms, nominal
  • Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads.
  • Temperature: Up to 150-degrees F (66 Degrees C)
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement: 0.41 A (9.8 VA) inrush current 0.28 A (6.7 VA) holding current
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers
  • Accommodates optional, field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance
  • Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance
