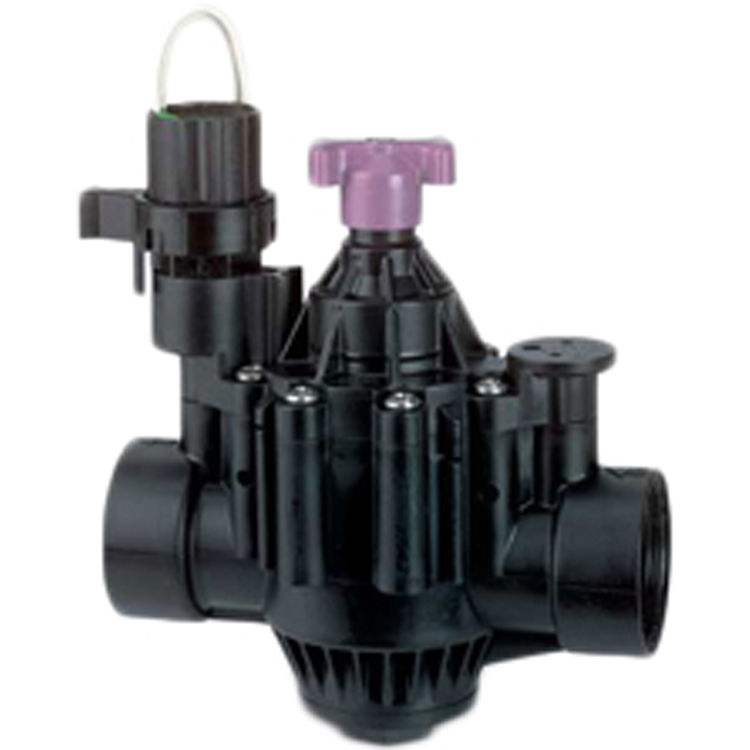

Rainbird 100PGA 24 VAC 1" PGA Electric Valve

SKU: 26594
Minimum Quantity: 1

$13.44/ea
Save 49% · Retail: $26.25

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$13.44/ea

About the Rainbird 100PGA

Rainbird 100PGA 1 Pga Electric Valve. The Rain Bird 100PGA is a 1" Electric Sprinkler Valve. It features a rugged PVC and glass-filled nylon construction for reliable operation, a closed forward flow design, a filtered pilot flow to resist any debris and clogging of the solenoid ports, and a slow closing feature that prevents water hammer and subsequent system damage. Other features include: a manual internal bleed that operates the valve without allowing water into the valve box, which allows the pressure regulator to be adjusted without even turning the valve on at the controller; a one-piece solenoid design with captured plunger and spring for easy servicing, which prevents loss of parts during field service; a non-rising flow control handle that adjusts water flow as needed; it accomodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance; and it accepts latching solenoid for use with battery-operated controllers.

Product Details

Manufacturer: Rainbird
Sprinkler Valve Features: Globe Valve/ Angle Valve
Mpn # 100PGA
Weight 1.66 lbs.

Product Features

  • 0.28 A (6.7 VA) holding current
  • Globe and angle configuration for flexibility in design and installation
  • Manual internal bleed operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller
  • Non-rising flow control handle adjusts water flow as needed
  • Normally closed, forward flow design
  • One-piece solenoid design with captured plunger and spring for easy servicing; prevents loss of parts during field service
  • Pressure: 15 to 150 PSI (1,0 to 10,4 bar)
  • Rugged PVC and glass-filled nylon construction for reliable operation
  • 0.41 A (9.8 VA) inrush current
  • Slow closing to prevent water hammer and subsequent system damage
  • Solenoid coil resistance: 24 Ohms, nominal
  • Temperature: up to 110-degrees F (43 Degrees C)
  • 100-PGA: 7-1/4" x 5-1/2" x 3-1/4"
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement: 0.41 A (9.8 VA) inrush current 0.28 A (6.7 VA) holding current
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers
  • Accommodates optional, field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance
  • Filtered pilot flow to resist debris and clogging of solenoid ports
