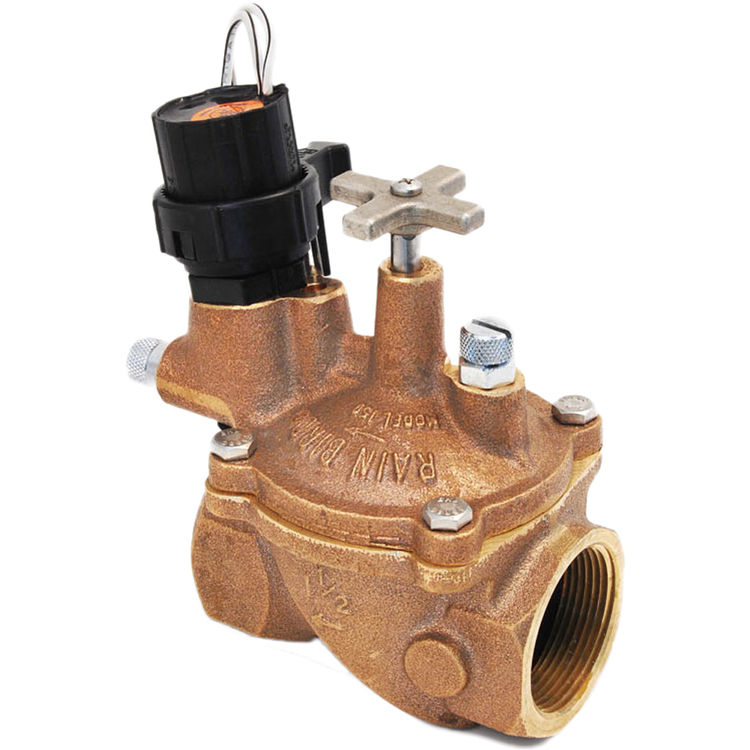

Rainbird 150GB 24 VAC 1-1/2" Electric Control Valve

SKU: 41603

$126.23/ea
Save 43% · Retail: $223.20

In Stock and Ready to Ship


Ships From Price Qty

About the Rainbird 150GB

Rainbird 150GB 1-1/2 Electric Control Valve 24Vac. The Rain Bird 150GB is a 1-1/2" Electric Control Valve 24V-AC. It features red brass construction for long-lasting durability, a reverse flow feature that ensures valves fail in the closed position if the diaphragm tears or rips which prevents flooding, water waste, and landscape damage. Other features include a slow closing valve to prevent water hammer and subsequent system damage, a one-piece solenoid design with captured plunger and spring for easy servicing, and a manual internal and external bleed, allowing the pressure regulator to be adjusted without turning the valve on the controller first.

Product Details

Manufacturer: Rainbird
Product Collection: Odin
Sprinkler Valve Features: Globe Valve/ Angle Valve
Mpn # 150GB
Weight 4.96 lbs.

Product Features

  • 0.41 A (9.9 8VA) inrush current; 0.28 A (6.7 VA) holding current
  • Flow control handle adjusts water flow as needed.
  • Flow: 5 to 200 GPM (1 to 45 m3/h; 0,32 to 12,60 l/s)
  • Manual internal and external bleed. Internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first.
  • One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
  • Optional purple flow control handle for non-potable water applications (EFB-GB-NP-HAN).
  • Pressure: 15 to 200 psi (1,0 to 13,8 bar)
  • Red brass construction for longer life and more rugged performance.
  • Reverse flow feature ensures valves fail in the closed position if the diaphragm tears or rips. Prevents flooding, water waste and landscape damage.
  • Slow closing to prevent water hammer and subsequent system damage.
  • Solenoid coil resistance: 24 Ohms, nominal
  • 100-GB 6" (15,2 cm) x 4 1/2" (11,4 cm) x 2 1/4" (5,7 cm)
  • Temperature: Up to 150 Degrees F (66 Degrees C)
  • 125-GB 5 3/4" (14,6 cm) x 5" (12,7 cm) x 3" (7,6 cm)
  • 150-GB 6 1/2" (16,5 cm) x 5 1/2" (14 cm) x 4" (10,2 cm)
  • 200-GB 7" (17,8 cm) x 6 3/4" (17,1 cm) x 5 1/4" (13,3 cm) Note: PRS-D option adds 2" (5,1 cm) to the valve height.
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
  • Accepts latching solenoid for use with Rain Bird battery operated controllers.
  • Accommodates optional, field installed PRS-D pressure regulating module to ensure maximum sprinkler performance.
  • External bleed permits flushing debris from the system, recommended for system start up and repairs.
