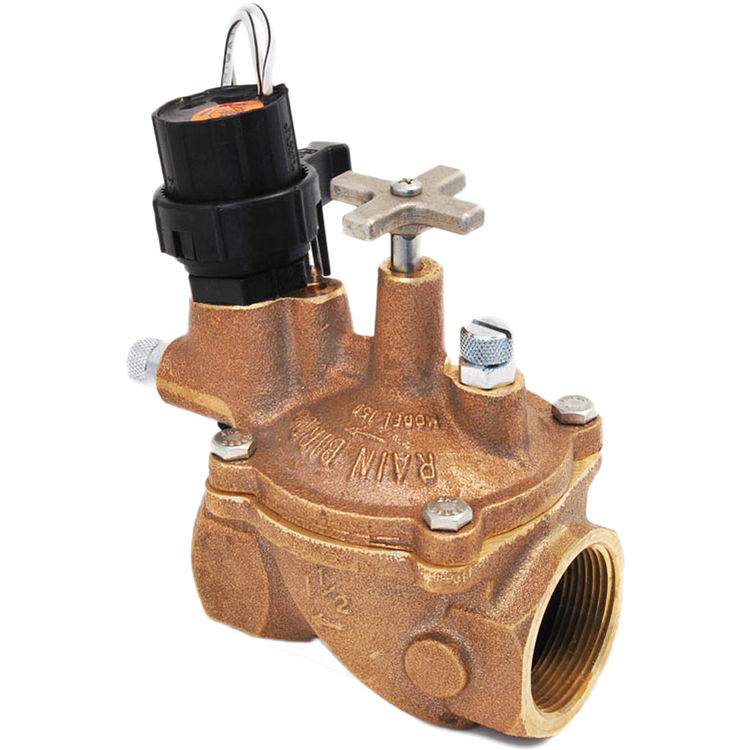

Rainbird 200GB 24 VAC 2" Electric Control Valve

SKU: 41604

$153.00/ea
Save 45% · Retail: $277.85

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$153.00/ea

About the Rainbird 200GB

Rainbird 200GB 2 Electric Control Valve 24Vac. The Rain Bird 200GB is a 2" Electric Control Valve 24V-AC. It features red brass construction for long-lasting durability, a reverse flow feature that ensures valves fail in the closed position if the diaphragm tears or rips which prevents flooding, water waste, and landscape damage. Other features include a slow closing valve to prevent water hammer and subsequent system damage, a one-piece solenoid design with captured plunger and spring for easy servicing, and a manual internal and external bleed, allowing the pressure regulator to be adjusted without turning the valve on the controller first.

Product Details

Manufacturer: Rainbird
Product Collection: Odin
Sprinkler Valve Features: Globe Valve/ Angle Valve
Mpn # 200GB
Weight 7.25 lbs.

Product Features

  • 0.41 A (9.9 8VA) inrush current; 0.28 A (6.7 VA) holding current
  • Flow control handle adjusts water flow as needed
  • Flow: 5 to 200 GPM
  • Manual internal and external bleed, internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first
  • One-piece solenoid design with captured plunger and spring for easy servicing, prevents loss of parts during field service
  • Pressure: 15 to 200 PSI (1,0 to 13,8 bar)
  • Red brass construction for longer life and more rugged performance
  • Reverse flow feature ensures valves fail in the closed position if the diaphragm tears or rips, prevents flooding, water waste, and landscape damage
  • Slow closing to prevent water hammer and subsequent system damage
  • Solenoid coil resistance: 24 Ohms, nominal
  • Temperature: up to 150-degrees F (66 Degrees C)
  • Dimensions: 7" (17,8 cm) x 6-3/4" (17,1 cm) x 5-1/4" (13,3 cm) Note: PRS-D option adds 2" (5,1 cm) to the valve height
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
  • Accepts latching solenoid for use with Rain Bird battery operated controllers
  • Accommodates optional, field installed PRS-D pressure regulating module to ensure maximum sprinkler performance
  • External bleed permits flushing debris from the system, recommended for system start up and repairs
