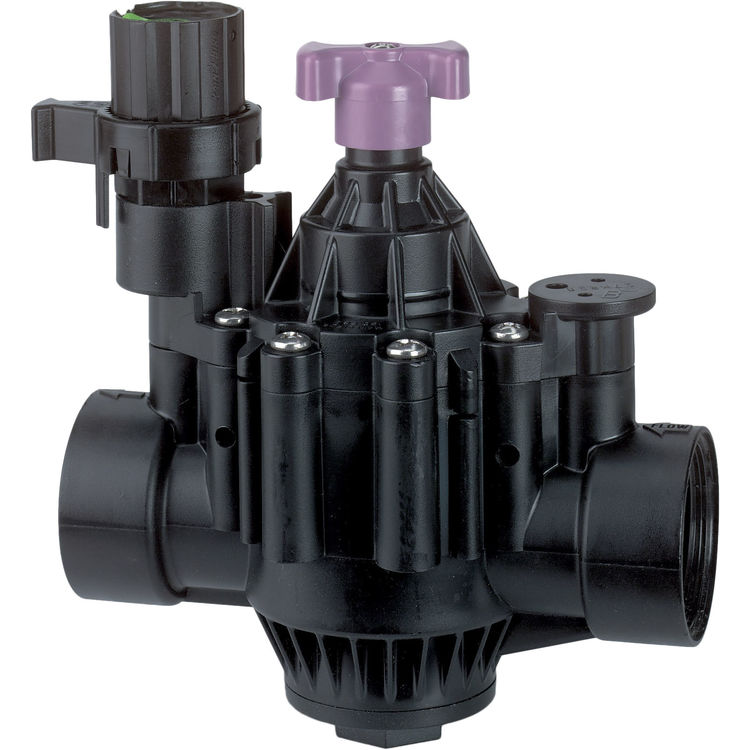

Rainbird 200PGA 24 VAC 2" PGA Electric Valve

SKU: 9660

$61.36/ea
Save 49% · Retail: $120.75

In Stock and Ready to Ship!


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$61.36/ea

About the Rainbird 200PGA

Rainbird 200PGA 2 Pga Electric Valve 24V. The Rain Bird 200PGA is a 2" 24V-AC Electric Sprinkler Valve. It features a rugged PVC and glass-filled nylon construction for reliable operation, a closed forward flow design, a filtered pilot flow to resist any debris and clogging of the solenoid ports, and a slow closing feature that prevents water hammer and subsequent system damage. Other features include: a manual internal bleed that operates the valve without allowing water into the valve box, which allows the pressure regulator to be adjusted without even turning the valve on at the controller; a one-piece solenoid design with captured plunger and spring for easy servicing, which prevents loss of parts during field service; a non-rising flow control handle that adjusts water flow as needed; it accomodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance; and it accepts latching solenoid for use with battery-operated controllers.

Product Details

Manufacturer: Rainbird
Sprinkler Valve Features: Globe Valve/ Angle Valve
Mpn # 200PGA
Shipping Dimensions 10.6" x 8.1" x 5.0"
Weight 4.41 lbs.

Product Features

  • 0.28 A (6.7 VA) holding current
  • Flow with PRS-D option: 5 to 150 GPM (1 to 34 m3/h; 0,32 to 9,44 l/s)
  • Flow without PRS-D option: 2 to 150 GPM (0,5 to 34 m3/h; 0,13 to 9,44 l/s)
  • Globe and angle configuration for flexibility in design and installation.
  • Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator to be adjusted without turning the valve on at the controller.
  • Non-rising flow control handle adjusts water flow as needed.
  • Normally closed, forward flow design.
  • One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
  • Optional purple flow control handle for non-potable water applications PGA-NP-HAN1 (1" and 1 1/2"); PGA-NP-HAN2 (2").
  • Pressure: 15 to 150 psi (1,0 to 10,4 bar)
  • Rugged PVC and glass-filled nylon construction for reliable operation.
  • 0.41 A (9.8 VA) inrush curren
  • Slow closing to prevent water hammer and subsequent system damage.
  • Solenoid coil resistance: 24 Ohms, nominal
  • Temperature: Up to 110 Degrees F (43 Degrees C)
  • 100-PGA: 7 1/4" x 5 1/2" x 3 1/4" (18,4 cm) x (14,0 cm) x (8,3 cm)
  • 150-PGA: 8" x 6 3/4" x 3 1/2" (20,3 cm) x (17,2 cm) x (8,9 cm)
  • 200-PGA: 10" x 7 3/4" x 5" (25,4 cm) x (23,5 cm) x (12,7 cm) Note: The PRS-D option adds 2" (5,1 cm) to the valve height
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement: 0.41 A (9.8 VA) inrush curren 0.28 A (6.7 VA) holding current
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers.
  • Accommodates optional, field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance.
  • Filtered pilot flow to resist debris and clogging of solenoid ports.
