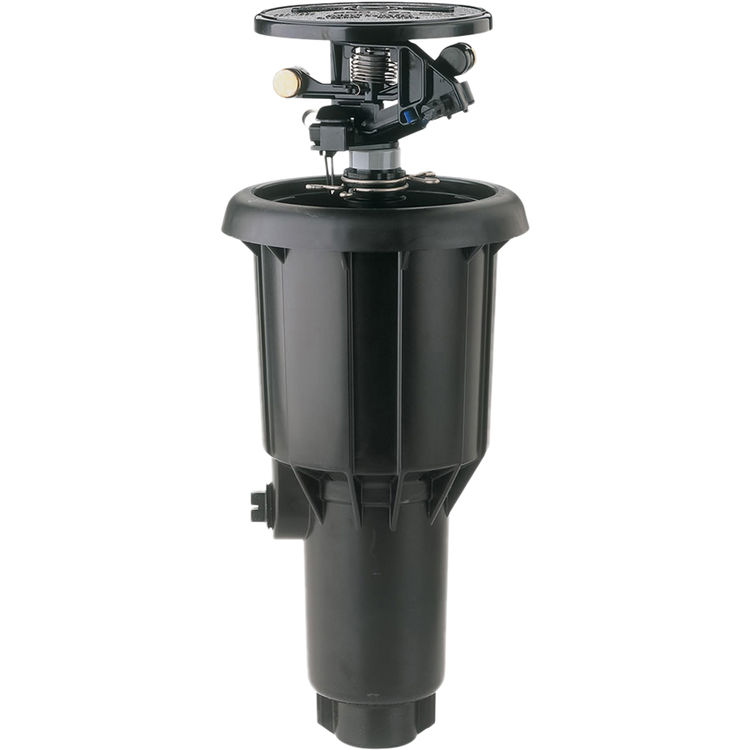

Rain Bird 2045A Maxi-Paw Full or Part-Circle Impact Rotor Pop-Up Sprinkler w/ Housing

SKU: 7288

Save 42% · Retail: $32.00

In Stock and Ready to Ship!
More Buying Options

Ships From Price Qty
Nevada Warehouse
Ships in 3-4 Days
$18.46/ea 216
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Rainbird 2045A

Save on the Rain Bird 2045A Maxi-Paw Full or Part-Circle Impact Rotor Pop-Up Sprinkler at PlumbersStock. Rain Bird is the sprinkler industry's leading manufacturer of irrigation products and services. For the last 80 years Rain Bird has offered the widest range of irrigation products for farms, golf courses, commercial, and residential applications. The Rain Bird 2045A is a Maxi-Paw Impact Pop-Up Sprinkler designed for both maximum spacing and close-in watering systems. The uniform water distribution also makes this Maxi Paw Sprinkler ideal for residential and most commercial applications. Whether its your front yard, or the football field, you can rely on 2045A Sprinklers. Other key features include interchangeable color-coded MPR nozzles, and a heavy-duty plastic housing case. The double-weighted arm provides users with slower rotation, and improved water throw.

Product Details

Product: Impact
Manufacturer: Rainbird
Style: Adjustable Circle
Connection Type: Threaded
Length: 36' - 45'
Mpn # 2045A
Weight 1.08 lbs.

Product Features

  • Adjustable arm spring for low-pressure and low-gallonage operation
  • Flow: 1.5 to 8.4 GPM (0,34 to 1,91 m3/h; 0,9 to 0,53 l/s)
  • Full-circle or part-circle arc 20 Degrees to 340 Degrees
  • Heavy-duty plastic case with sturdy, reinforced ribbed design
  • Heavy-duty, stainless steel retract spring assures positive sprinkler pop-down
  • Hooded bearing for a longer life
  • Inlet filter screen and pressure-activated wiper seal protect internal assembly from debris to ensure positive pop-up and retraction
  • Combination 1/2" (15/21) or 3/4" (20/27) bottom inlet
  • No tools required to change nozzles
  • Nozzles (sold separately): 06-red; 07-black; 08-blue; 10-yellow; 12-beige
  • Overall height: 9 3/10" (23,6 cm)
  • Pop-up height: 3" (7,6 cm)
  • Precipitation Rate: 0.28 to 1.17 inches per hour (7 to 30 mm/h)
  • Combination 1/2" (15/21) or 3/4" (20/27) FPT bottom inlet 1/2" (15/21) FPT side inlet
  • Precision Jet tube (PJ) minimizes side splash
  • Pressure: 25 to 60 PSI (1,7 to 4,1 Bars)
  • Radius: 22 to 45 feet (6,7 to 13,7 m)
  • Self-flushing inner trip with improved inner trip lever
  • Serviceable through the top of the case
  • **NOTE**: Side inlet installation is not recommended in freezing climates
  • Side or combination bottom inlet for design flexibility
  • Distance control with diffuser pin
  • Straight-through flow for superior performance in dirty water
  • Three-year professional customer satisfaction policy.
  • Double-weighted arm for slower rotation and increased distance of throw
  • Exposed surface diameter: 5" (12,7 cm)
  • Five interchangeable, color-coded MPR nozzles with standard trajectory (sold separately)
