Rainbird 300BPE 24 VAC 3" Electric Control Valve

SKU: 41600

$323.04/ea
Save 47% · Retail: $615.00

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$323.04/ea

About the Rainbird 300BPE

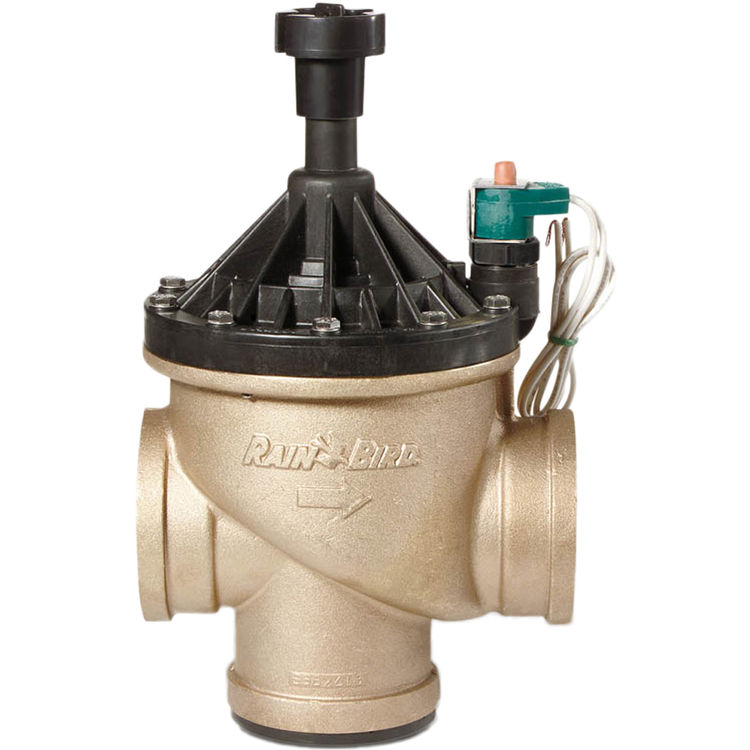

Rainbird 300BPE 3 Electric Control Valve 24Vac. The Rain Bird 300BPE is a 3" Electric Control Valve 24V-AC, made of a unique hybrid construction featuring a durable red brass body and glass-filled nylon bonnet for a long-lasting durability. It also features a globe and angle configuration for flexibility in design and installation, slow closing to prevent water hammer and subsequent system damage, a robust solenoid that provides a dependable performance even during constant operation, and a manual internal/external bleed , permiting both flushing debris from the system, and keeping out any water into the valve box.

Product Details

Manufacturer: Rainbird
Sprinkler Valve Features: Globe Valve/ Angle Valve
Mpn # 300BPE
Weight 20.65 lbs.

Product Features

  • 13 5/8" x 8" x 7"
  • Highly efficient operation with extremely low pressure loss.
  • Holding current: 0.28 A (6.7 VA) at 60Hz
  • Inrush current: 0.41 A (9.8 VA) at 60Hz
  • Latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10,4 bar)
  • Manual external bleed permits flushing debris from the system. Recommended for system start up and repairs
  • Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator adjustment without turning the valve on at the controller.
  • Normally closed, forward flow design.
  • Power: 24 VAC 50/60 Hz (cycles per second) solenoid
  • Pressure: 20 to 200 psi (1,4 to 13,8 bar)
  • Purple flow control handle for non-potable water applications (BPE-NP-HAN)
  • 300-BPE(s): H x L x W
  • Robust solenoid provides dependable performance even during constant operation.
  • Slow closing to prevent water hammer and subsequent system damage.
  • Temperature: up to 140 Degrees F (60 Degrees C)
  • Unique hybrid construction featuring durable red brass body and glass-filled nylon bonnet for long life at a value price.
  • 34,6 cm x 20,3 cm x 17,8 cm Note: PRS-D option adds 2": (5,1 cm) to the valve height.
  • Accommodates field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance
  • BPES only: Patented nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material. Prevents debris build-up and clogging.
  • Coil resistance: 28 Ohms, nominal
  • Flow control handle adjusts water flows as needed and incorporates a brass thread insert for longer life.
  • Flow with/without PRS-D option: 60 to 300 gpm (13,6 to 68,1 m3/h; 3,78 to 18,90 l/s)
  • Globe and angle configuration for flexibility in design and installation.
