Rainbird 300BPES 24 VAC 3" Brass Scrubber Valve

SKU: 40254

$352.10/ea
Save 46% · Retail: $656.25

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$352.10/ea

About the Rainbird 300BPES

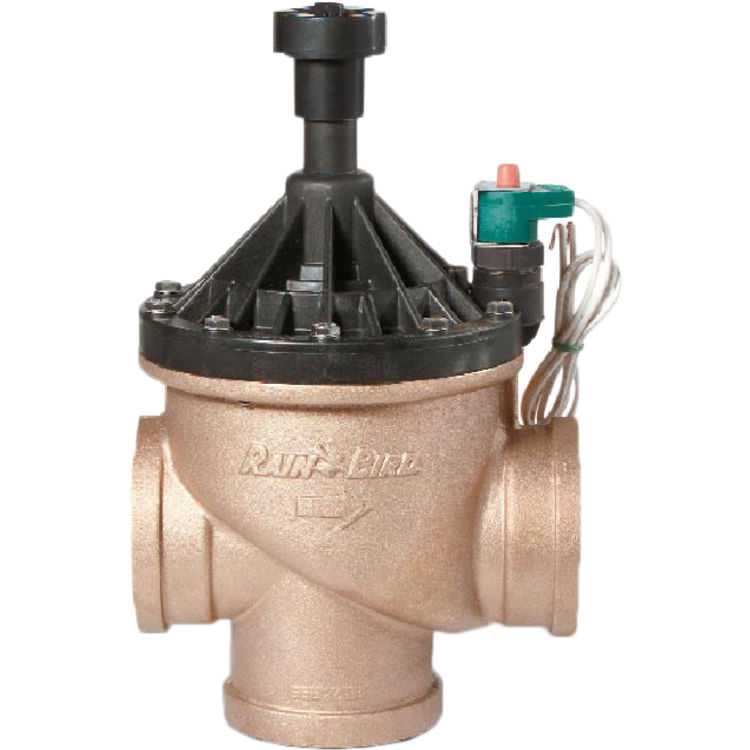

Rainbird 300BPES 3 Brass Scrubber Valve. The Rain Bird 300BPES is a 3" Electric Control Valve 24V-AC with Patented Scrubber Mechanism, made of a unique hybrid construction featuring a durable red brass body and glass-filled nylon bonnet for a long-lasting durability. It also features a globe and angle configuration for flexibility in design and installation, slow closing to prevent water hammer and subsequent system damage, a robust solenoid that provides a dependable performance even during constant operation, and a manual internal/external bleed , permiting both flushing debris from the system, and keeping out any water into the valve box.

Product Details

Product:
Manufacturer: Rainbird
Type: Electric Valve
Mpn # 300BPES
Weight 20.25 lbs.

Product Features

  • 13-5/8" x 8" x 7"
  • Highly efficient operation with extremely low pressure loss
  • Holding current: 0.28 A (6.7 VA) at 60Hz
  • Inrush current: 0.41 A (9.8 VA) at 60Hz
  • Latching solenoid for use with Rain Bird battery-operated controllers up to 150 PSI (10,4 bar)
  • Manual external bleed permits flushing debris from the system. Recommended for system start up and repairs
  • Manual internal bleed operates the valve without allowing water into the valve box; it allows the pressure regulator adjustment without turning the valve on at the controller
  • Normally closed, forward flow design
  • Power: 24 VAC 50/60 Hz (cycles per second) solenoid
  • Pressure: 20 to 200 PSI (1,4 to 13,8 bar)
  • Robust solenoid provides dependable performance even during constant operation
  • Slow closing to prevent water hammer and subsequent system damage
  • Temperature: up to 140 Degrees F (60 Degrees C)
  • Unique hybrid construction featuring durable red brass body and glass-filled nylon bonnet for long life at a value price
  • Accommodates field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance
  • Patented nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material, prevents debris build-up and clogging
  • Coil resistance: 28 Ohms, nominal
  • Flow control handle adjusts water flows as needed and incorporates a brass thread insert for longer life
  • Flow Rate: 60 to 300 GPM
  • Globe and angle configuration for flexibility in design and installation
