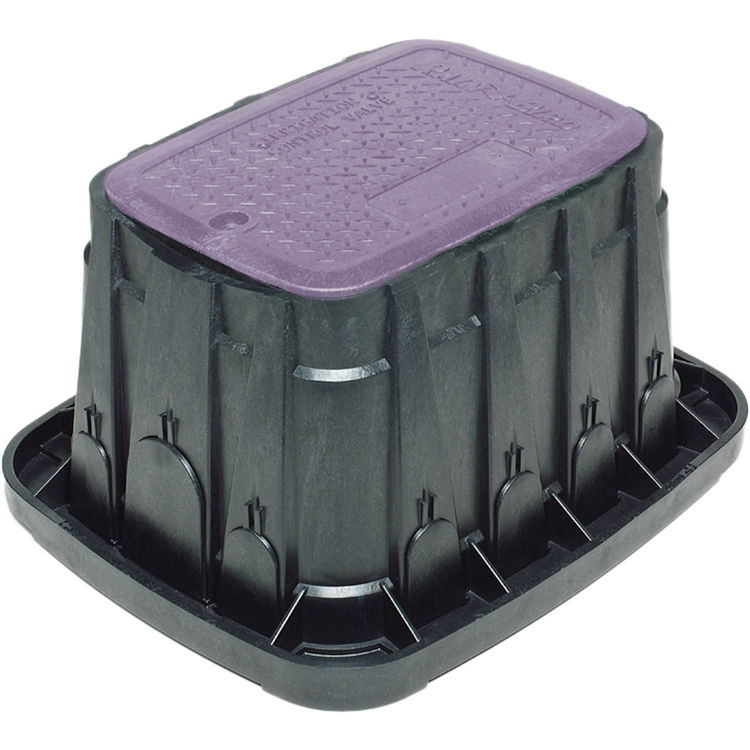

RainBird VB-STD-P (A11401) Standard Rectangular Valve Box w/Purple Lid

SKU: 41644
Save 30% · Retail: $41.10

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Rainbird VBSTDP

The RainBird VB-STD-P (part number A11401) standard rectangular valve box is designed to protect in-ground irrigation valves and other subsurface system components. It includes a purple lid to indicate a non-potable water source; and the lid has beveled edges that help prevent damage from yard maintenance equipment. The hole-free lid also helps keep out stinging and biting insects, snakes, and other creatures, minimizing risk and liability for the harm they might cause. In addition, the lid can be securely fastened to the body with an optional stainless-steel bolt and clip. Constructed of durable, high-density polyethylene (HDPE), this RainBird VB-STD-P valve box resists damage from impact, UV light, weather, moisture, and soil contact. All of the black-colored parts of RainBird valve boxes are built from 100% recycled HDPE, making them environmentally friendly and LEED compliant. RainBird VB Series valve boxes feature corrugated sides, giving them greater compression strength and increased stability under heavy loads. Inferior valve boxes require bricks underneath to prevent settling, but the wide-flange base of VB Series boxes reduces settling and eliminates the cost and labor of installing bricks. Outside dimensions of the RainBird VB-STD-P (part number A11401) are 12.1" high and 17.5" long x 13.0" wide at the top, and measure 23.2" x 19.3" at the base. On the inside, the openings are 14.5" x 9.4" at the top and 18.7" x 14.1" at the bottom. A total of 13 knock-outs are easy to remove for placing pipe, and they can be slipped back into their retainers above pipes to stop backfill dirt from getting inside. This product is backed by a 5-year warranty. Founded in 1933, RainBird has a long-standing commitment to "The Intelligent Use of Water" and provides the industry's broadest range of irrigation products and services for agriculture, commercial developments, golf courses, sports venues, and homes in over 130 countries worldwide.

Product Details

Product: Boxes and Covers
Manufacturer: Rainbird
Color: Purple
Material: Plastic
Shape: Rectangle
Type: Non Potable Water
Use: Irrigation
Weight 10.90 lbs.

Product Features

  • Purple lid indicates irrigation system uses non-potable water.
  • Installation flexibility with interlocking, bottom-to-bottom stacking of valve boxes (optional extension models also available) for larger and deeper applications.
  • Easily removable knock-outs simplify pipe placement and reduce installation time.
  • Knock-out retainers hold removed knock-outs in place above pipes to keep backfill dirt out of valve box.
  • Two large center knock-outs (one on each end) accommodate up to 3.5" diameter pipe, and eleven small knock-outs accommodate up to 2.0" diameter pipe. Optional extensions do not have knock-outs.
  • Made of sturdy, high-density polyethylene (HDPE) structural-foam resin, this valve box has superior resistance to impact, UV light, weather, moisture, and chemical action of soils.
  • All black bodies and black lids are constructed from 100% recycled materials, making them earth-friendly and LEED compliant.
  • Corrugated sides protect valves with maximum durability, compression strength, and stability under heavy loads.
  • Wide-flange base anchors the box to grade and minimizes settling.
  • Beveled lid edges help prevent damage to lids from lawn equipment.
  • Shovel access slot on body allows for easy lid removal.
  • Optional stainless-steel bolt and clip securely fasten lid to the body.
  • Smart lid design minimizes pest access with bolt-hole knock-out that keeps insects out of the box when bolt is not used.
  • Marking area on lid provides dedicated location for valve identification.
  • Height: 12.1" (30.7 cm)
  • Top Opening: 14.5" x 9.4" (36.8 cm x 23.9 cm)
  • Top Outer Dimensions: 17.5" x 13.0" (44.4 cm x 33.1 cm)
  • Bottom Opening: 18.7" x 14.1" (47.6 cm x 35.9 cm)
  • Bottom Outer Dimensions: 23.2" x 19.3" (59.0 cm x 49.0 cm)
  • Industry-best, 5-year warranty.
