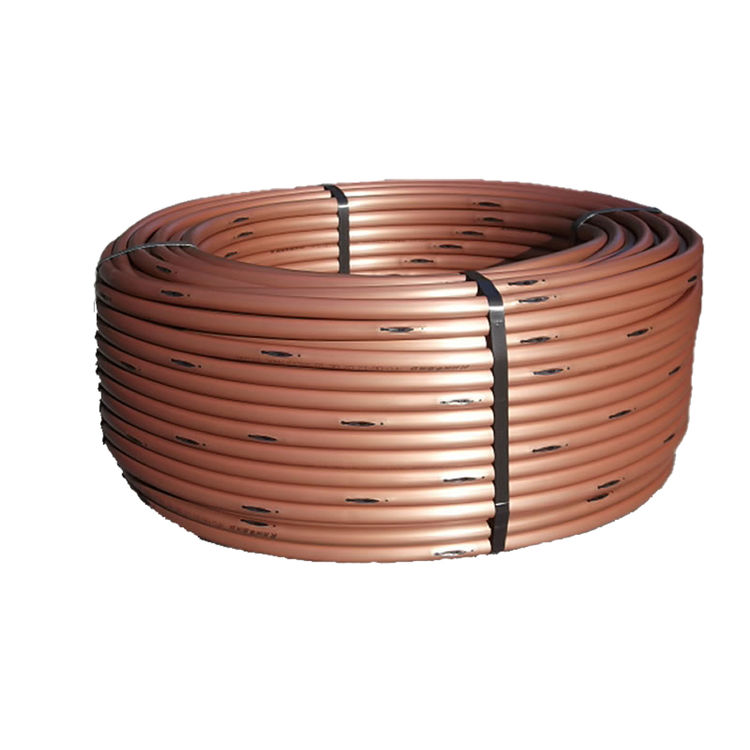

Rain Bird XFS0612100 - 1/2" Subsurface Dripline - Copper Shield, 0.6 GPH, 12" Spacing, 100 ft. Coil

SKU: 163845

Save 48% · Retail: $54.59

  Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Rainbird XFS0612100

Save on the Rain Bird XFS-06-12-100 1/2" Subsurface Dripline (X48000) at PlumbersStock. Its features include a 0.61 gph (gallons per hour) flow rate, 12" spacing requirements for emitters, and 100 feet of length. Copper shield technology is perfect for small and narrow spaces.

Product Details

Manufacturer: Rainbird
Mpn # XFS0612100
Weight 4.10 lbs.

Product Features

  • Unique material offers significantly greater flexibility and kink-resistance for fast, easy installation.
  • The bend radius for XFD dripline is 3 no matter which way you bend the tube. Other driplines will bend 4 if bending with the natural curve of the coil and only 7 if bending against the natural curve of the coil.
  • Greater flexibility assures design capability of tight curves and spaces.
  • Accepts Rain Bird Easy Fit Compression Fittings, 17mm insert fittings and LOC fittings.
  • Variety of flow rates, spacing and coil lengths provides design flexibility for a number of non- turfgrass applications.
  • The pressure-compensating emitter design provides a consistent flow over the entire lateral length ensuring higher uniformity for increased reli ability in the pressure range of 8.5 to 60 psi.
  • Dual-layered tubing (brown over black or purple over black) provides unmatched resistance to chemicals, algae growthand UV damage.
  • Pressure: 8.5 to 60 psi
  • Flow rates: 0.4, 0.6, and 0.9 gph


4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers


Thank you for your interest in the Rain Bird XFS-06-12-100! Yes, this 1/2" X48000 XFS Drip Tube with Copper Shield and the Rain Bird SSF70-50S 1/2" Sub-Surface Drip Emitter Tubing flexible, copper-colored polyethylene tubing that has factory installed pressure-compensating, inline emitters spaced evenly per listed spacing. They also have the almost the same operating range except that the Rain Bird XFS-06-12-100 can have the flow rate of both 0.6 and 0.9 gallons per hour. Their differences are not only in length but also in specifications as the Rain Bird XFS-06-12-100 has the O.D. of 0.634", I.D. of 0.536", thickness of 0.049" and can have 12”, 18” and 24” spacing as desired. The Rain Bird SSF70-50S on the other hand, has the O.D. of 0.700”, I.D. of 0.580”, thickness of 0.060” and 18” emitter spacing. We hope this helps! Please refer to the specification sheet and sell sheet of the Rain Bird XFS-06-12-100 if you have more questions. Once you’ve made your selection, always remember to click Add to Cart to confirm your order, enter your zipcode and you’ll be all set! For availability inquiries, or to better understand lead and ship times, please contact one of our knowledgeable customer service representatives @ 435-868-4020 between 8:00 AM to 7:00 PM MT or through e-mail @


Yes. Copper Shield Technology protects the emitter from root intrusion, creating a long-lasting, low maintenance sub-surface drip irrigation system for use under turf grass or shrub and groundcover areas. Thank you for visiting our website!
