RIDGID 47940 Dual 1/4 to 3/8 inch 18 TPI NPT HS RH cut for Dual Die Heads #502

SKU: 96738

$161.37/ea
Save 26% · Retail: $219.00

  Available to Ship in 1-2 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks
$161.37/ea

About the Ridgid 47940

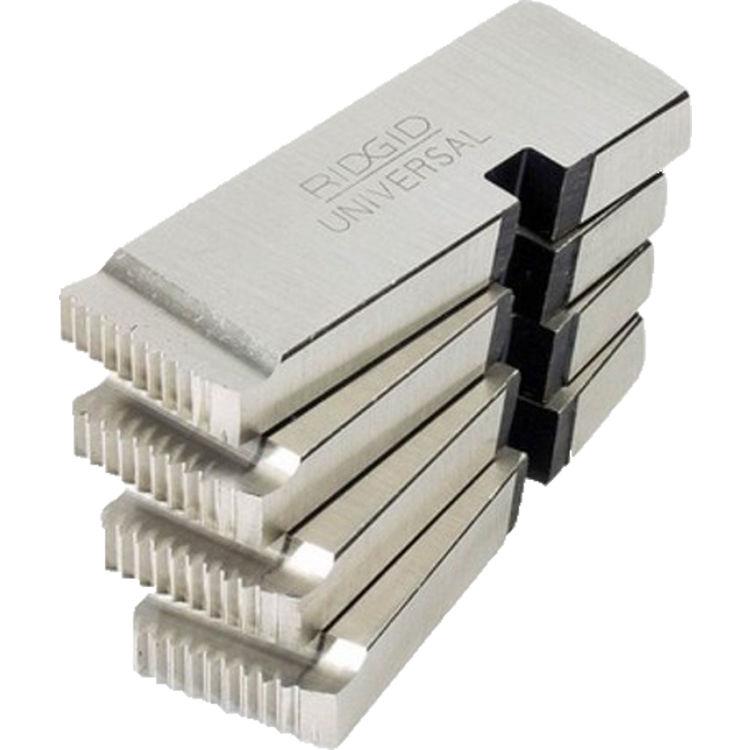

RIGID 47940 Dual one quarter to three eighths inch NPT (Nominal Pipe Size) - 18 TPI (Threads Per Inch) High Speed Right Hand Cut dies are used in the RIDGID Dual Die Head No. 502 and the The Die Heads can be mounted onto several different threading machines from either RIDGID or Wheeler Rex. The Dies in the head can be easily changed and if the Die Head is mounted to a machine the Die Head does not need to be removed from the machine for die changes. Dies have notches designed into them that will click into position inside the die head with its spring balls that catch the die and allow the operator to easily know when the dies are correctly installed in the Universal Die Head. And the die blades are designed with a two-step cut method which provides a very stable bite into the pipe, allowing any external coating to be removed as the pipe is cut at the same time. Dies from RIDGID are marked for easy identification of the type of pipe and the sizes they are designed to cut for easy identification. Dies are crafted from tool steel and designed for right hand cutting of threads.

Product Details

Manufacturer: Ridgid
Trade Tools: Plumbing
Style: Die Set
Product: Parts and Accessories
Connection Type: Threaded
Mpn # 47940
Weight 0.38 lbs.

Product Features

  • Notches in the dies click into position against spring balls in the die head for easy confirmation the dies are installed correctly
  • Two-step blade provides a stable bite allowing you to remove any external coating and cut the pipe at the same time
  • Marked for easy identification of the type of pipe and the sizes they are designed to cut for easy identification
  • 1/4 - 3/8 inch nominal pipe Size
  • High-Speed
  • NPT
  • Used in 502 Dual Die Head
  • Full Lifetime Warranty
  • Dies are crafted from tool steel
  • Dies can be changed without removing the die head from the machine
  • Dies can be used in several different Die Heads from Wheeler Rex
  • Threading size, thread length, and microfine adjustment of thread diameter can all be adjusted easily
  • With 27 mm-wide profiling dies, the load is reduced, which makes it easy on the motor of a threading machine
